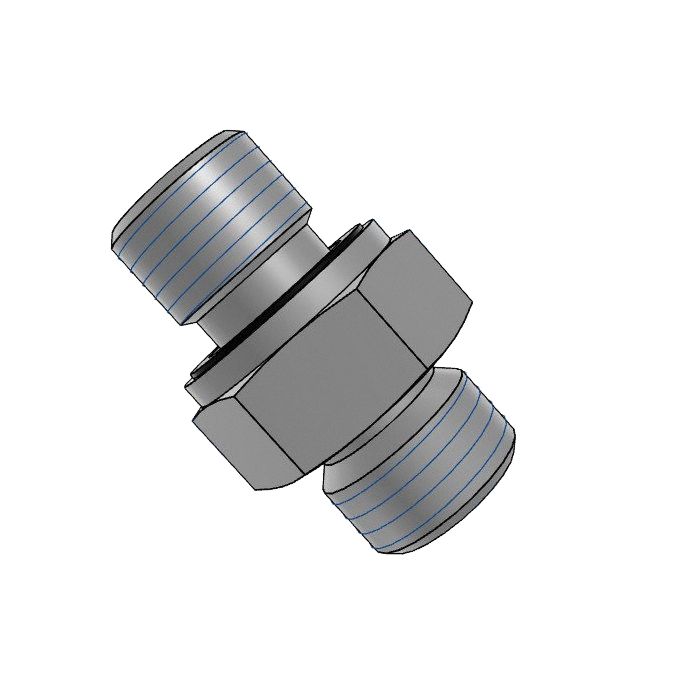

main product photo

Din X Mbspp Es Seal Complete

Ask A Question

Description & Features

This steel straight adapter features a DIN tube connection on one side and a Bspp connection with an ES seal on the other. The DIN side has a M16 X 1.5 male end with a S08 size, while the Bspp side has a G 1/4 - 19 male end with a 1/4" size. The Adaptall Ch Width is 19mm, Adaptall L1 Length is 34mm, Adaptall L2 Length is 15mm, and Adaptall L3 Length is 12mm. The Product Name Long is Din X Mbspp Es Seal Complete.

SKU: 5002S-08-04C

Supplier Part Number (MPN): 5002S-08-04C

Specifications

Brand
adapt-all
Connection Size 1
8 mm
Connection Size 2
1/4 in
Connection Type
Male BSP, Male Metric
Connection Type 1
Male Metric DIN 24 deg Tube
Connection Type 2
Male BSPP Elastomeric Seal
Dimension Standards
BS 5200, DIN 2353, ISO 1179, ISO 8434-1, ISO 8434-6
Dimensions
34 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
19 mm
Material
Steel
Material Construction
Carbon Steel
Series
5002 Series
Thread Size
M16x1.5 x 1/4-19

Product Questions & Answers (3)

Question by: Diane E on Jun 5, 2025, 9:51 PM
trying to match up fittings here. is this the straight steel adapter that goes from a DIN tube M16 x 1.5 (S08) over to a G 1/4-19 BSPP male with an ES seal?
Answer by: Customer Support on Jun 7, 2025, 1:34 PM
You’ve got it. One end is a DIN tube connection with an M16 x 1.5 male in size S08, and the other end is a BSPP male G 1/4 - 19 in 1/4 inch size with an ES seal. It’s a straight steel adapter.
Question by: Keith A on Aug 8, 2025, 11:50 AM
got a hydraulic line running DIN tube fittings on one end and need to tie into a BSPP port on a piece of equipment, the BSPP side is 1/4 inch. this the right adapter for that?
Answer by: Customer Support on Aug 10, 2025, 10:02 AM
For a straight connection between an S08 DIN tube line and a 1/4 inch BSPP port, yes, that's exactly what this fitting is built for. The DIN side runs M16 x 1.5 male thread at S08 size, and the BSPP side is a G 1/4-19 male end with an ES seal included. Both ends are male, so make sure your mating ports are female on both sides before ordering.
Question by: Chad G on Aug 24, 2025, 2:13 PM
Will this here fitting hold up alright in a hydraulic setup, or is it more for lower pressure stuff?
Answer by: Customer Support on Aug 25, 2025, 9:40 PM
Designed for hydraulic applications, this steel adapter ensures a secure connection between DIN tube and BSPP systems.
