Din X Mbspp Es Seal Complete

Description & Features

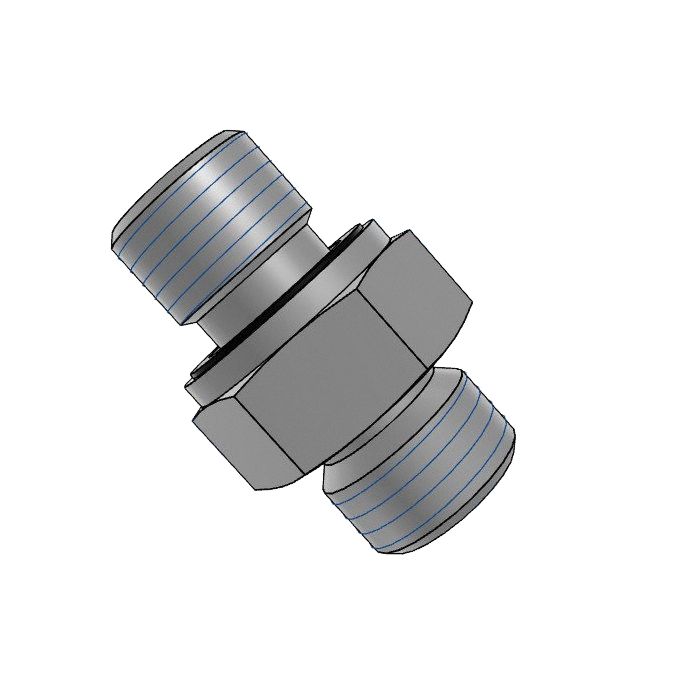

Crafted from durable steel, this hydraulic fitting offers reliable performance in demanding industrial environments. The straight connector design features an M16 x 1.5 DIN tube on one side, paired with a G 3/8 - 19 BSPP male connection on the other, providing versatility in connection types. With dimensions including a 22mm width across flats and lengths of 34.5mm, 15.5mm, and 12mm, this component is engineered to meet precise installation requirements.

The Din X Mbspp Es Seal Complete is ideal for applications requiring robust sealing and secure connections. Its compact dimensions and straight shape make it suitable for integration into a variety of hydraulic systems, ensuring compatibility and ease of use. This product is manufactured by Adaptall, a trusted name in hydraulic components, ensuring quality and reliability.

SKU: 5002S-08-06C

Supplier Part Number (MPN): 5002S-08-06C

Specifications

CH Width 22mm	L1 Length 34.5mm	L2 Length 15.5mm	L3 Length 12mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M16 X 1.5	Side 1 Gender M	Side 1 Size S08	Side 1 Type Din Tube	Side 2 Callout G 3/8 - 19	Side 2 Gender M	Side 2 Size 3/8"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5002S-08-06C	Product Weight 0.13 lbs

Product Questions & Answers (2)

Question by: Harvey P on Feb 28, 2026, 9:38 PM

I need a fitting to go from a DIN tube to a BSPP, reckon this'll do the trick?

Answer by: Customer Support on Mar 2, 2026, 6:25 AM

This steel hydraulic fitting is designed for exactly that purpose. It has an M16 x 1.5 DIN tube on one side and a G 3/8 - 19 BSPP male connection on the other.

Question by: Chad P on Feb 9, 2026, 7:12 AM

got a DIN tube fitting on one side and need to tie into a BSPP male port on the other, this the right piece for that?

Answer by: Customer Support on Feb 10, 2026, 8:35 PM

That's what this fitting does. One end is an M16 x 1.5 DIN tube connection, and the other is a G 3/8 - 19 BSPP male. Straight body, no bends, so it works best when both ports are already lined up. Steel construction, so it holds up well in standard industrial hydraulic setups.
