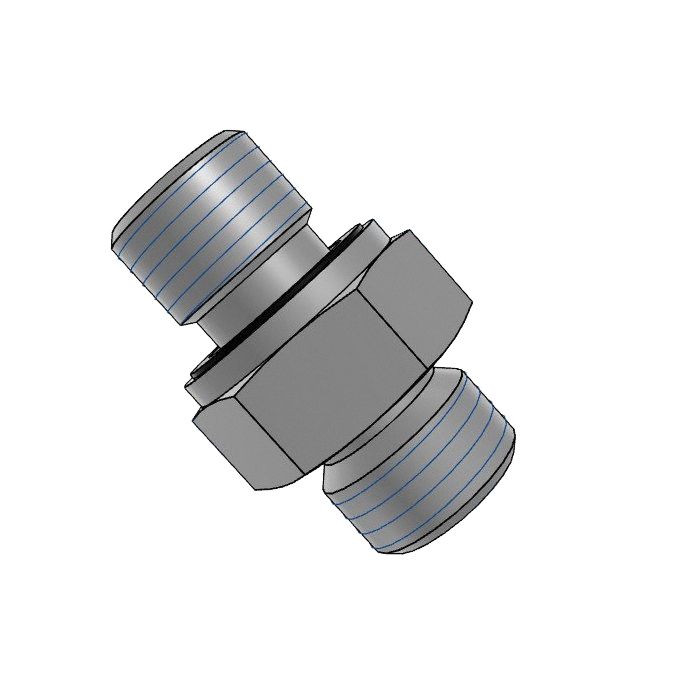

main product photo

Din X Mbspp Es Seal Complete

Ask A Question

Description & Features

This straight steel Adaptall fitting is a Din X Mbspp Es Seal Complete. It features a M18 X 1.5 Din Tube Side 1 connection and a G 1/4 - 19 Bspp Side 2 connection.

The Side 1 size is S10, with a Side 2 size of 1/4". It has an Adaptall Ch Width of 19mm, Adaptall L1 Length of 34mm, Adaptall L2 Length of 14.5mm, and Adaptall L3 Length of 12mm.

SKU: 5002S-10-04C

Supplier Part Number (MPN): 5002S-10-04C

Specifications

Brand
adapt-all
Connection Size 2
1/4 in
Connection Type
Male BSP, Male Metric
Connection Type 1
Male Metric DIN 24 deg Tube
Connection Type 2
Male BSPP Elastomeric Seal
Dimension Standards
BS 5200, DIN 2353, ISO 1179, ISO 8434-1, ISO 8434-6
Dimensions
34 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
19 mm
Material
Steel
Material Construction
Carbon Steel
Series
5002 Series
Thread Size
M18x1.5 x 1/4-19

Product Questions & Answers (2)

Question by: Neal E on Apr 20, 2025, 3:40 PM
part number 5002S-10-04C, that's the M18 x 1.5 DIN tube side going to a quarter-inch BSPP male on the other end, right?
Answer by: Customer Support on Apr 22, 2025, 6:30 AM
Correct on both counts. Side 1 is a male M18 x 1.5 DIN tube connection sized at S10, and Side 2 is a male G 1/4-19 BSPP connection at 1/4 inch. Both sides are male, so keep that in mind when planning your port or hose end pairing on each side.
Question by: Warren O on Sep 23, 2025, 10:45 AM
What kinda steel is this fitting made outta? Just wanna make sure it'll hold up.
Answer by: Customer Support on Sep 25, 2025, 7:51 AM
This straight Adaptall fitting is made from steel. It's designed for use in hydraulic applications.
