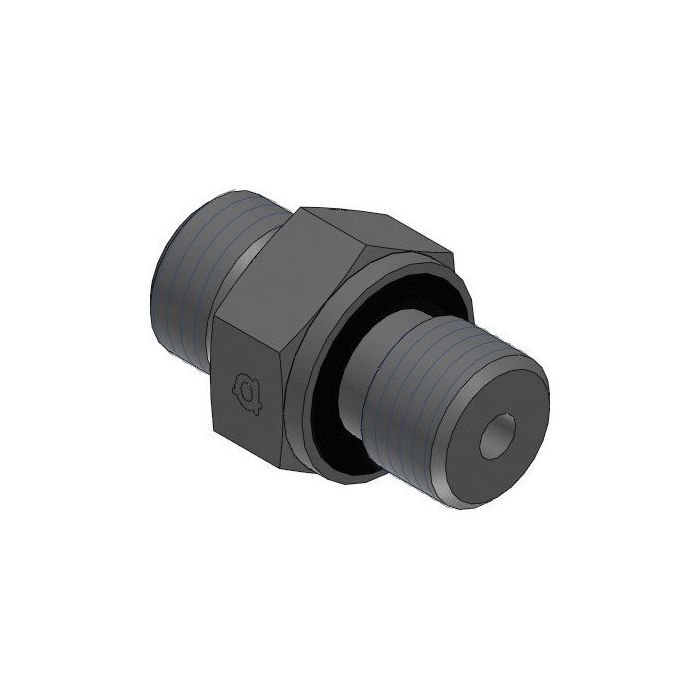

main product photo

Din X Mbspp Es Seal

Ask A Question

Description & Features

A straight steel adapter connecting a metric DIN tube end to a male BSPP port, this Din X Mbspp Es Seal is suited for hydraulic line assemblies requiring a reliable transition between these two common connection standards. The DIN side features an M18 x 1.5 male thread (S10), while the BSPP side carries a G 3/8-19 male thread, accommodating 3/8" porting.

Manufactured by Adaptall in steel with a straight configuration, the adapter measures 34.5mm in overall length (L1), with an L2 of 15mm, L3 of 12mm, and a wrench width of 22mm. The ES seal design provides effective sealing at the DIN connection interface, making it a practical choice for medium-pressure hydraulic circuits where a DIN tube fitting must mate with BSPP-ported components.

SKU: 5002S-10-06

Supplier Part Number (MPN): 5002S-10-06

Specifications

Brand
adapt-all
Connection Size 2
3/8 in
Connection Type
Male BSP, Male Metric
Connection Type 1
Male Metric DIN 24 deg Tube
Connection Type 2
Male BSPP Elastomeric Seal
Dimension Standards
BS 5200, DIN 2353, ISO 1179, ISO 8434-1, ISO 8434-6
Dimensions
34.5 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
22 mm
Material
Steel
Material Construction
Carbon Steel
Series
5002 Series
Thread Size
M18x1.5 x 3/8-19

Product Questions & Answers (3)

Question by: Rex L on Oct 22, 2025, 7:09 AM
got a DIN tube end with M18 x 1.5 on it, will this adapter get me over to a 3/8 BSPP port?
Answer by: Customer Support on Oct 23, 2025, 7:49 PM
Built for that exact changeover, it has an M18 x 1.5 male DIN tube end on one side and a G 3/8-19 male BSPP on the other, so it mates a DIN tube fitting to a 3/8 inch BSPP-ported component.
Question by: Peggy P on Jan 14, 2026, 7:37 AM
got a DIN tube end on a hydraulic line that needs to tie into a BSPP-ported valve block, this straight adapter do that job?
Answer by: Customer Support on Jan 15, 2026, 4:54 PM
That's what it's built for. One end is an M18 x 1.5 male DIN tube fitting (S10 size) and the other is a G 3/8-19 male BSPP thread for 3/8" porting. Both sides are male, so you'd be threading each end into its respective female port or fitting. Steel construction, straight configuration, 34.5mm overall length. For medium-pressure hydraulic circuits needing that DIN-to-BSPP transition, it fits the bill.
Question by: Connie C on Oct 27, 2025, 3:14 PM
So, will this here fitting work to hook up a DIN tube to a BSPP port?
Answer by: Customer Support on Oct 29, 2025, 2:41 PM
Yes, this straight steel adapter is designed specifically for connecting a metric DIN tube end to a male BSPP port. It's meant for hydraulic line assemblies where you need that transition between the two connection types.
