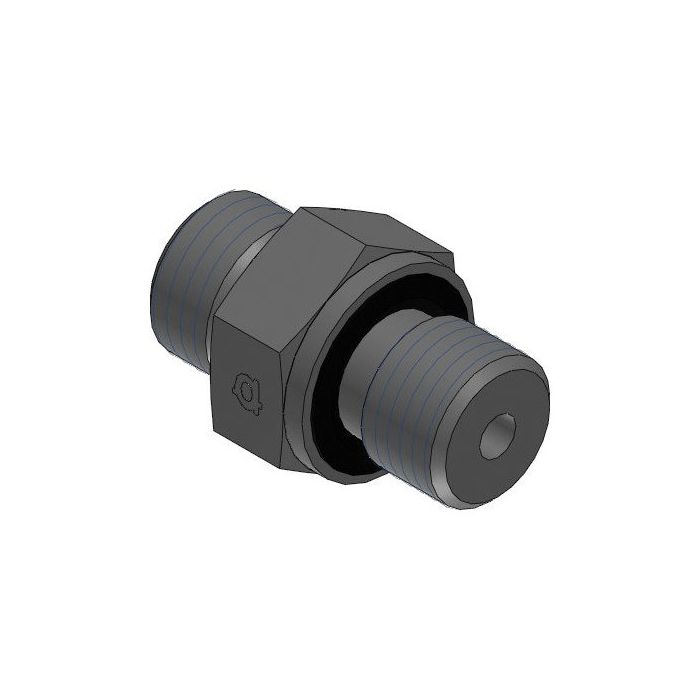

main product photo

Din X Mbspp Es Seal

Ask A Question

Description & Features

This Adaptall straight adapter features a Din Tube (M18 X 1.5) connection on one side and a 1/2" Bspp connection on the other. It is constructed from durable steel for reliable performance in demanding hydraulic applications.

The Din X Mbspp Es Seal adapter has an Adaptall Ch Width of 27mm, an Adaptall L1 Length of 39mm, an Adaptall L2 Length of 17.5mm, and an Adaptall L3 Length of 14mm.

SKU: 5002S-10-08

Supplier Part Number (MPN): 5002S-10-08

Specifications

Brand
adapt-all
Connection Size 2
1/2 in
Connection Type
Male BSP, Male Metric
Connection Type 1
Male Metric DIN 24 deg Tube
Connection Type 2
Male BSPP Elastomeric Seal
Dimension Standards
BS 5200, DIN 2353, ISO 1179, ISO 8434-1, ISO 8434-6
Dimensions
39 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
27 mm
Material
Steel
Material Construction
Carbon Steel
Series
5002 Series
Thread Size
1/2-14 x M18x1.5

Product Questions & Answers (2)

Question by: Shawn J on Mar 5, 2026, 12:05 PM
what's the thread size on the DIN side of this adapter, and is it a male fitting?
Answer by: Customer Support on Mar 7, 2026, 10:40 AM
The DIN tube connection measures M18 x 1.5 and yes, it's male on that end. The other side is also male, coming in at 1/2" BSPP with a G 1/2-14 thread callout. Both ends are male, so keep that in mind when planning your port connections.
Question by: Lynn G on Jun 14, 2025, 1:45 PM
What size is the BSPP end on this thing?
Answer by: Customer Support on Jun 15, 2025, 5:44 PM
The BSPP side is a 1/2" connection, according to the specs.
