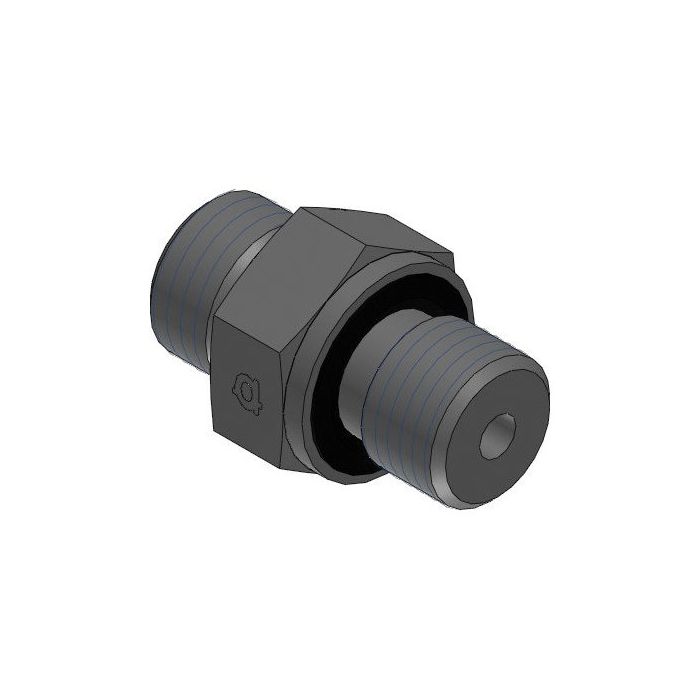

main product photo

Din X Mbspp Es Seal

Ask A Question

Description & Features

Manufactured from steel in a straight configuration, this Adaptall fitting connects a metric DIN tube end (M20 x 1.5, Size S12) on one side to a male BSPP port (G 3/8-19, 3/8") on the other. The ES seal design provides a reliable, leak-resistant connection suitable for hydraulic line assemblies requiring a DIN to BSPP transition.

The Din X Mbspp Es Seal measures 36.5mm in overall length (L1), with an L2 of 17mm and L3 of 12mm, and a body width of 22mm, proportions suited to compact inline installations where thread compatibility between DIN and BSPP standards is required.

SKU: 5002S-12-06

Supplier Part Number (MPN): 5002S-12-06

Specifications

Brand
adapt-all
Connection Size 1
L12
Connection Size 2
3/8 in
Connection Type
Male BSP, Male Metric
Connection Type 1
Male Metric DIN 24 deg Tube
Connection Type 2
Male BSPP Elastomeric Seal
Dimension Standards
BS 5200, DIN 2353, ISO 1179, ISO 8434-1, ISO 8434-6
Dimensions
36.5 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
22 mm
Material
Steel
Material Construction
Carbon Steel
Series
5002 Series
Thread Size
M20x1.5 x 3/8-19

Product Questions & Answers (1)

Question by: Dustin M on Sep 17, 2025, 12:19 PM
Got a machine running DIN metric tube lines that feeds into a BSPP port block, would this fitting make that transition without needing extra adapters in between?
Answer by: Customer Support on Sep 18, 2025, 9:04 PM
For a straight DIN-to-BSPP inline connection, this is exactly what that fitting does. One end threads onto an M20 x 1.5 DIN tube (Size S12) and the other end is a male G 3/8-19 BSPP port connection. The ES seal design handles the leak resistance at the joint, so you're not stacking adapters to make it work. At 36.5mm overall length it keeps the assembly fairly compact, which helps when clearance is tight around the port block.
