Din X Mbspp Es Seal

Ask A Question

Description & Features

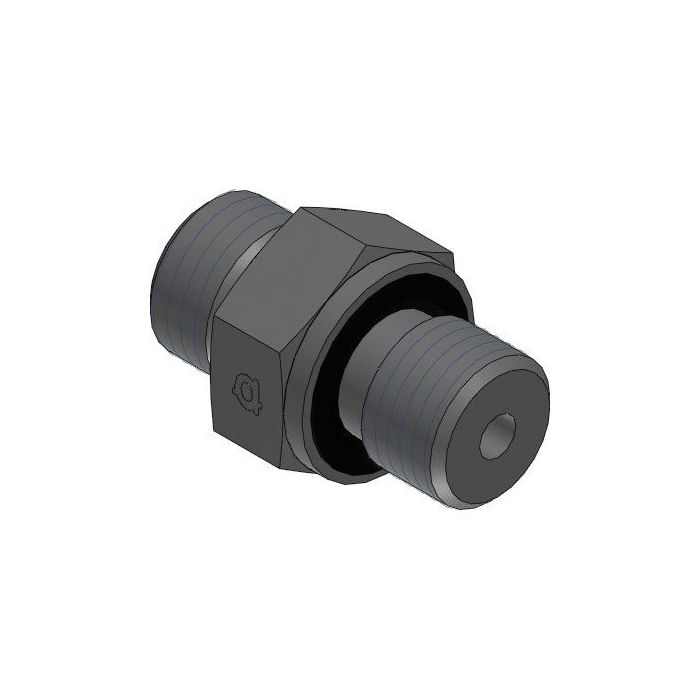

This straight steel Din X Mbspp Es Seal features a M20 X 1.5 Din Tube Side 1 connection with a S12 size and male gender. The Side 2 connection is a G 1/2 - 14 Bspp with a 1/2" size and male gender.

This Adaptall fitting has a 27mm wrench width, a L1 length of 39mm, a L2 Length of 17.5mm, and a L3 Length of 14mm.

SKU: 5002S-12-08

Supplier Part Number (MPN): 5002S-12-08

Specifications

Brand
adapt-all
Connection Size 1
L12
Connection Size 2
1/2 in
Connection Type
Male BSP, Male Metric
Connection Type 1
Male Metric DIN 24 deg Tube
Connection Type 2
Male BSPP Elastomeric Seal
Dimension Standards
BS 5200, DIN 2353, ISO 1179, ISO 8434-1, ISO 8434-6
Dimensions
39 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
27 mm
Material
Steel
Material Construction
Carbon Steel
Series
5002 Series
Thread Size
M20x1.5 x 1/2-14

Product Questions & Answers (2)

Question by: Rusty D on Oct 11, 2025, 6:19 PM
Got a hydraulic line running M20 x 1.5 DIN tube on one end and need to tie into a G 1/2 BSPP port on the other, this the right fitting for that?
Answer by: Customer Support on Oct 13, 2025, 3:33 PM
Yeah, that's exactly what this one's built for. One side is M20 x 1.5 DIN tube, the other is G 1/2-14 BSPP, both male. Steel construction, straight configuration. Part number is 5002S-12-08 if you're double-checking against your order sheet.
Question by: Cindy C on Apr 24, 2025, 3:55 PM
What size wrench do I need for this fella?
Answer by: Customer Support on Apr 26, 2025, 1:57 PM
You'll need a 27mm wrench for this fitting.
