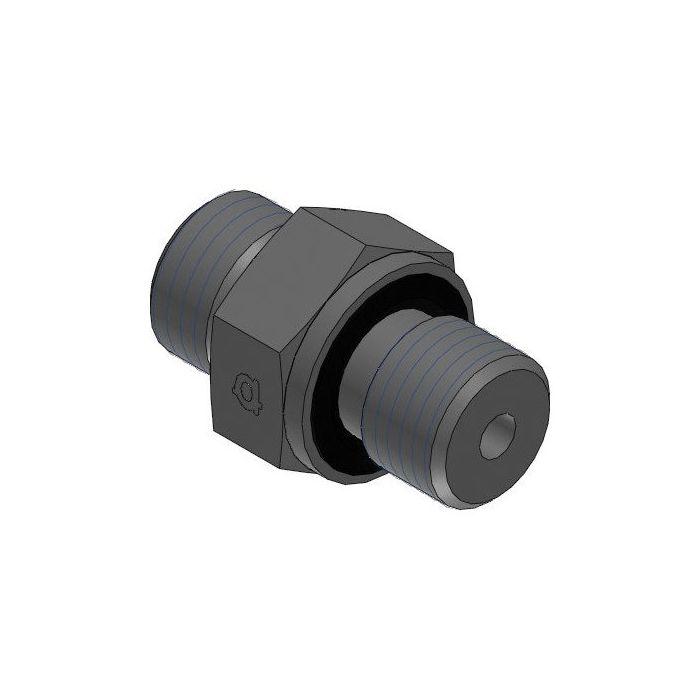

main product photo

Din X Mbspp Es Seal

Ask A Question

Description & Features

This steel Adaptall fitting, a Din X Mbspp Es Seal, is designed with a straight shape for secure connections in hydraulic systems. It features a Side 1 Din Tube connection with a M22 X 1.5 callout and S14 size.

The fitting's Side 2 Bspp connection measures 1/2" with a G 1/2 - 14 callout. Key dimensions include a 27mm Adaptall Ch Width, 41mm Adaptall L1 Length, 19mm Adaptall L2 Length, and 14mm Adaptall L3 Length.

SKU: 5002S-14-08

Supplier Part Number (MPN): 5002S-14-08

Specifications

Brand
adapt-all
Connection Size 1
14 mm
Connection Size 2
1/2 in
Connection Type
Male BSP, Male Metric
Connection Type 1
Male Metric DIN 24 deg Tube
Connection Type 2
Male BSPP Elastomeric Seal
Dimension Standards
BS 5200, DIN 2353, ISO 1179, ISO 8434-1, ISO 8434-6
Dimensions
41 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
27 mm
Material
Steel
Material Construction
Carbon Steel
Series
5002 Series
Thread Size
M22x1.5 x 1/2-14

Product Questions & Answers (1)

Question by: Gary S on Jun 11, 2025, 3:37 PM
got a din tube line with M22 x 1.5 on one end and i need to go into a 1/2 bspP port, is this the right adapter?
Answer by: Customer Support on Jun 13, 2025, 6:45 AM
For that combo, yes. Side 1 is a DIN tube male with an M22 x 1.5 callout (size S14), and Side 2 is a BSPP male in 1/2 inch with a G 1/2 - 14 callout, all in a straight steel fitting.
