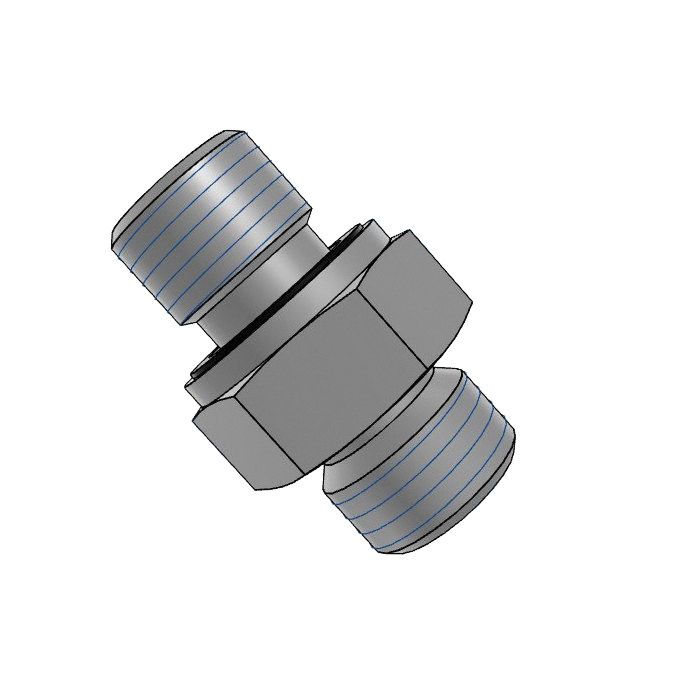

main product photo

Din X Mbspp Es Seal Complete

Ask A Question

Description & Features

This straight steel Din X Mbspp Es Seal Complete adapter features a Din Tube side 1 connection with a M24 X 1.5 callout and S16 size. The side 2 connection is Bspp with a G 3/8 - 19 callout and 3/8" size.

The Adaptall Ch Width is 27mm, the Adaptall L1 Length is 38mm, the Adaptall L2 Length is 18mm, and the Adaptall L3 Length is 12mm.

SKU: 5002S-16-06C

Supplier Part Number (MPN): 5002S-16-06C

Specifications

Brand
adapt-all
Connection Size 1
S16
Connection Size 2
3/8 in
Connection Type
Male BSP, Male Metric
Connection Type 1
Male Metric DIN 24 deg Tube
Connection Type 2
Male BSPP Elastomeric Seal
Dimension Standards
BS 5200, DIN 2353, ISO 1179, ISO 8434-1, ISO 8434-6
Dimensions
38 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
27 mm
Material
Steel
Material Construction
Carbon Steel
Series
5002 Series
Thread Size
M24x1.5 x 3/8-19

Product Questions & Answers (3)

Question by: Joyce W on Dec 14, 2025, 1:08 PM
What's the width across the flats on this fittin'?
Answer by: Customer Support on Dec 15, 2025, 8:51 PM
This adapter has a wrench flat of 27mm, so a 27mm wrench will fit it.
Question by: Kurt J on Jun 11, 2025, 7:50 AM
trying to match up an oddball fitting, what are the exact thread callouts on both ends of this adapter?
Answer by: Customer Support on Jun 13, 2025, 6:00 AM
On side 1 it is a DIN tube male connection with an M24 x 1.5 callout in size S16. Side 2 is a BSPP male connection with a G 3/8 - 19 callout in 3/8 inch size.
Question by: Hubert M on Feb 23, 2026, 2:32 PM
adapter's got a M24 x 1.5 on one end and G 3/8-19 BSPP on the other -- that right? just want to make sure before i order
Answer by: Customer Support on Feb 25, 2026, 6:15 AM
Correct on both counts. One end is a male DIN tube connection, M24 x 1.5 thread, S16 size. The other end is male BSPP, G 3/8-19, which is 3/8 inch. Both sides are male, so keep that in mind when planning your fitting arrangement.
