Din X Mbspp Es Seal

Description & Features

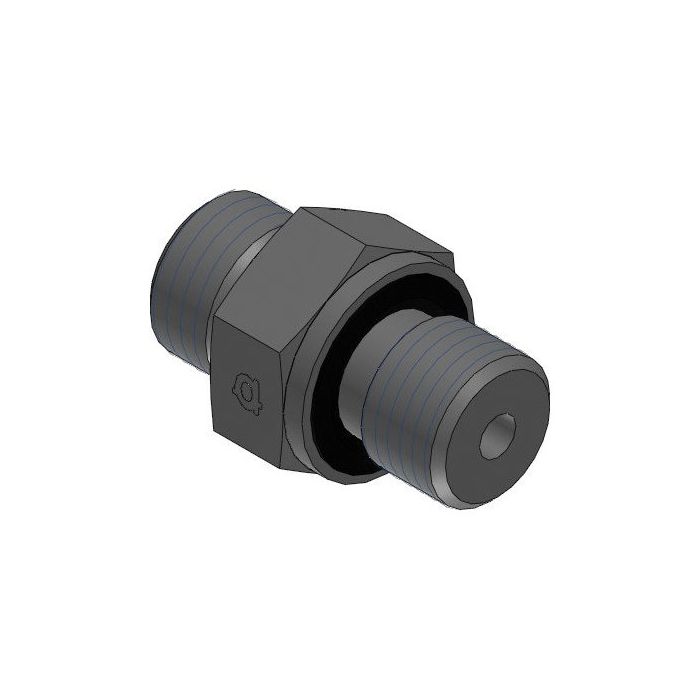

This straight steel Adaptall Din X Mbspp Es Seal features a Din Tube Side 1 connection with a M24 X 1.5 callout and S16 size. The Side 2 connection is Bspp with a G 1/2 - 14 callout and 1/2" size. The Adaptall Ch Width measures 27mm, with an Adaptall L1 Length of 41mm, Adaptall L2 Length of 18.5mm, and Adaptall L3 Length of 14mm.

SKU: 5002S-16-08

Supplier Part Number (MPN): 5002S-16-08

Specifications

Brand adapt-all	Connection Size 1 S16	Connection Size 2 1/2 in	Connection Type Male BSP, Male Metric	Connection Type 1 Male Metric DIN 24 deg Tube	Connection Type 2 Male BSPP Elastomeric Seal	Dimension Standards BS 5200, DIN 2353, ISO 1179, ISO 8434-1, ISO 8434-6	Dimensions 41 mm L	Finish Zinc-Plated	Fitting Type Adapter	Hex Size 27 mm	Material Steel	Material Construction Carbon Steel	Series 5002 Series	Thread Size M24x1.5 x 1/2-14

Product Questions & Answers (1)

Question by: Rusty M on Mar 10, 2026, 10:00 AM

part number 5002S-16-08, is that the M24 x 1.5 DIN side connecting over to a half-inch BSPP male, or did I read the callouts backwards?

Answer by: Customer Support on Mar 12, 2026, 8:45 AM

You've got it right. The M24 x 1.5 thread is the DIN tube side, listed as S16 sizing, and the G 1/2 - 14 is the BSPP male end at half inch. Both sides are male, so plan your mating connections accordingly on each end.
