Din X Mbspp Es Seal Complete

Description & Features

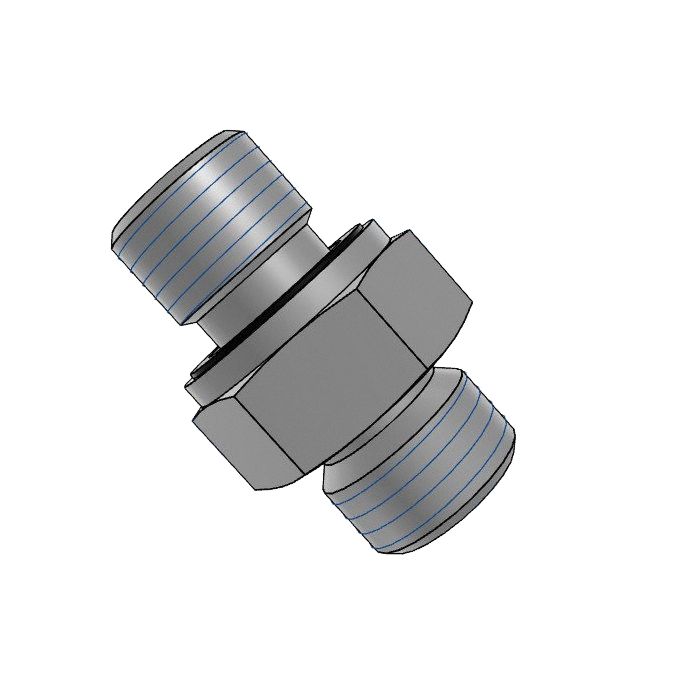

The Din X Mbspp Es Seal Complete crafted by Adaptall America is an industry-specific part catering to technical applications requiring precise componentry. Designed with a straight steel form this connector features a male Din Tube on Side 1 with a callout of M24 X 1.5 and size S16. On Side 2 it includes a male Bspp connector with a callout of G 1/2 - 14 and size 1/2".

Key dimensions include a CH width of 27mm an L1 length of 41mm an L2 length of 18.5mm and an L3 length of 14mm. This seal is meticulously engineered for steadfast performance with no need for additional components such as batteries blades check valves or diodes.

This component is uncalibrated and does not require a mandrel remote control or thread sealant for installation. The durable steel construction ensures long-lasting reliability in demanding industrial environments.

Supplier Part Number: 5002S-16-08C

Specifications

CH Width 27mm	L1 Length 41mm	L2 Length 18.5mm	L3 Length 14mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M24 X 1.5	Side 1 Gender M	Side 1 Size S16	Side 1 Type Din Tube	Side 2 Callout G 1/2 - 14	Side 2 Gender M	Side 2 Size 1/2"	Side 2 Type Bspp	Alternate Part Numbers Alternate Part Number MI-08733760, Alternate Part Number MINO-03671X96005	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5002S-16-08C	Product Weight 0.20 lbs

Product Questions & Answers (2)

Question by: Lyle B on Jun 2, 2025, 2:33 PM

What's the width across the flats on this fitting? Just need to make sure I got the right wrench.

Answer by: Customer Support on Jun 4, 2025, 6:51 AM

The CH width, which is what you'll use your wrench on, is 27mm.

Question by: Lee B on Aug 16, 2025, 1:14 PM

fitting has a M24 X 1.5 thread on one end and G 1/2 - 14 on the other, that right?

Answer by: Customer Support on Aug 17, 2025, 6:52 PM

Correct on both counts. Side 1 is a male DIN tube connection with an M24 X 1.5 callout at S16 size, and Side 2 is a male BSPP connection with a G 1/2 - 14 callout at 1/2 inch. Both ends are male, so keep that in mind when you're planning out your port or fitting configuration on the receiving side.
