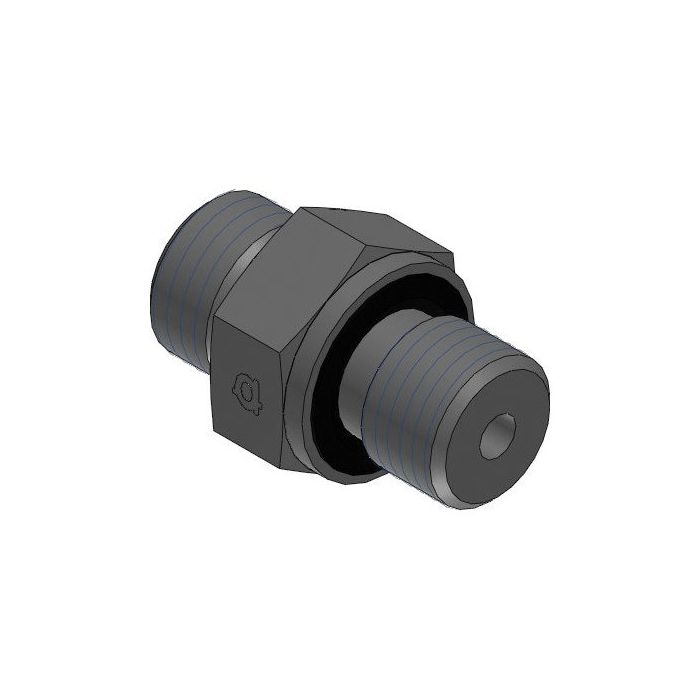

main product photo

Din X Mbspp Es Seal

Ask A Question

Description & Features

This high-quality Adaptall fitting is crafted from durable steel, ensuring robust performance in demanding industrial environments. Designed with precision, it features a straight shape and two male connections: a Din Tube on Side 1 with a size of M24 X 1.5 (S16), and a BSPP connection on Side 2 sized at 3/4" - 14. The fitting dimensions include a width of 32mm, an L1 length of 45mm, an L2 length of 20.5mm, and an L3 length of 16mm, providing a compact yet efficient solution for your hydraulic systems.

Ideal for use in systems requiring reliable sealing, the Din X Mbspp Es Seal is engineered to meet the rigorous demands of industrial applications, offering compatibility with various hydraulic setups. Its precise construction not only enhances its durability but also ensures a secure and leak-proof connection, making it a critical component in maintaining system integrity.

SKU: 5002S-16-12

Supplier Part Number (MPN): 5002S-16-12

Specifications

Brand
adapt-all
Connection Size 1
S16
Connection Size 2
3/4 in
Connection Type
Male BSP, Male Metric
Connection Type 1
Male Metric DIN 24 deg Tube
Connection Type 2
Male BSPP Elastomeric Seal
Dimension Standards
BS 5200, DIN 2353, ISO 1179, ISO 8434-1, ISO 8434-6
Dimensions
45 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
32 mm
Material
Steel
Material Construction
Carbon Steel
Series
5002 Series
Thread Size
M24x1.5 x 3/4-14

Product Questions & Answers (3)

Question by: Dale D on Dec 24, 2025, 7:21 PM
got a line with an M24 x 1.5 DIN tube end on one side. Is this the straight adapter that goes over to a 3/4 BSPP male?
Answer by: Customer Support on Dec 25, 2025, 8:56 PM
For a DIN tube to BSPP straight connection, this fitting matches M24 x 1.5 (S16) male on Side 1 and a G 3/4 - 14 BSPP male on Side 2, so it is set up for that exact thread and size combination.
Question by: Brett B on May 31, 2025, 4:55 PM
Will this fitting hold up if it's constantly under pressure in a hydraulic system?
Answer by: Customer Support on Jun 2, 2025, 10:33 AM
Crafted from durable steel, this Adaptall fitting is designed to provide robust performance even in demanding industrial environments where hydraulic systems are constantly under pressure.
Question by: Warren G on Jun 1, 2025, 4:47 PM
Got a line running DIN fittings on one end and BSPP on the other, does this adapter go between those two without needing anything extra in the middle?
Answer by: Customer Support on Jun 3, 2025, 6:54 AM
That's what this fitting handles. One end is a male DIN tube connection sized at M24 x 1.5 (S16), and the other is a male BSPP at G 3/4-14. Both sides are male, so you'd be threading each end into a female port or coupler on your existing lines. No additional adapters needed to bridge those two thread standards, assuming your ports match those specs.
