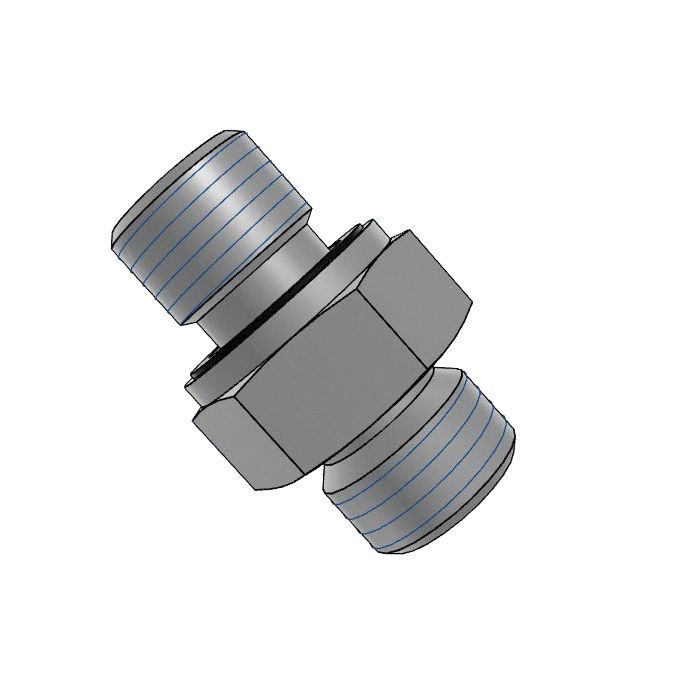

main product photo

Din X Mbspp Es Seal Complete

Ask A Question

Description & Features

This straight steel adapter features a DIN tube connection on one side and a Bspp connection on the other. The DIN side has a M24 x 1.5 thread, designated as S16, while the Bspp side features a G 3/4 - 14 thread with a 3/4" size.

The Adaptall Din X Mbspp Es Seal Complete adapter has an Adaptall channel width of 32mm, an L1 length of 45mm, an L2 length of 20.5mm and an L3 Length of 16mm.

SKU: 5002S-16-12C

Supplier Part Number (MPN): 5002S-16-12C

Specifications

Brand
adapt-all
Connection Size 1
S16
Connection Size 2
3/4 in
Connection Type
Male BSP, Male Metric
Connection Type 1
Male Metric DIN 24 deg Tube
Connection Type 2
Male BSPP Elastomeric Seal
Dimension Standards
BS 5200, DIN 2353, ISO 1179, ISO 8434-1, ISO 8434-6
Dimensions
45 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
32 mm
Material
Steel
Material Construction
Carbon Steel
Series
5002 Series
Thread Size
M24x1.5 x 3/4-14

Product Questions & Answers (3)

Question by: Brent P on Nov 7, 2025, 7:26 AM
Got a hydraulic line running DIN tube on one end and need to tie into a BSPP port on the other side, this the right piece for that?
Answer by: Customer Support on Nov 8, 2025, 8:04 AM
That's what this adapter is built for. One end is a DIN tube connection with an M24 x 1.5 thread at the S16 size, and the other end is a male BSPP connection with a G 3/4 - 14 thread at 3/4 inch. Both sides are male, so make sure your mating ports are female on each end before ordering. It's a straight configuration, so no angle or offset to account for during installation.
Question by: Marvin S on Oct 11, 2025, 7:20 AM
trying to hook a DIN tube line into a BSPP port, is this the right adapter?
Answer by: Customer Support on Oct 13, 2025, 6:05 AM
For that kind of hookup, it matches a DIN tube connection on one end and a BSPP male on the other. The DIN side is M24 x 1.5 (S16), and the BSPP side is G 3/4 - 14 (3/4 inch).
Question by: Steve C on Feb 10, 2026, 9:14 AM
Will this adapter hold up okay in a hydraulic system running at, say, 3000 psi?
Answer by: Customer Support on Feb 11, 2026, 10:51 AM
For a hydraulic setup pushing 3000 psi, this steel adapter should work fine, but make sure you follow all the torque specs during installation.
