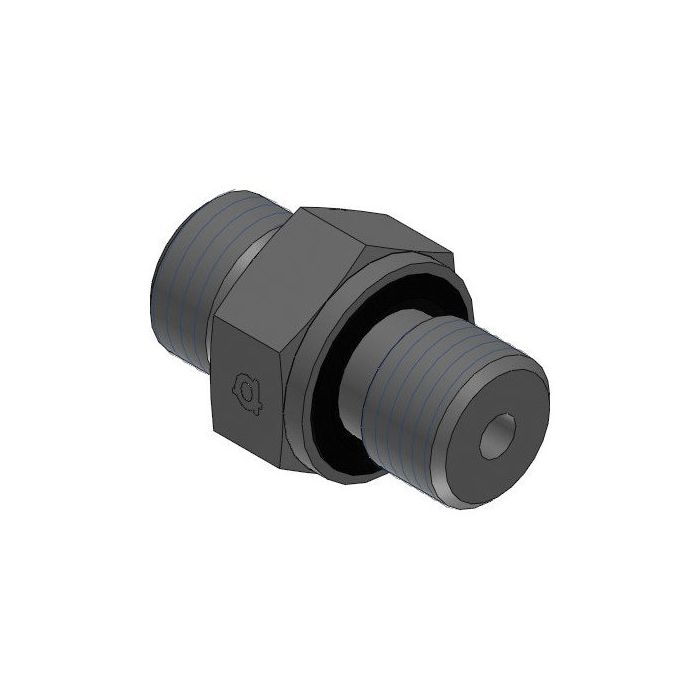

main product photo

Din X Mbspp Es Seal

Ask A Question

Description & Features

This straight steel adapter connects a DIN tube end (M30 x 2.0 male) on one side to a BSPP male port (G 1/2 - 14) on the other, making it well suited for joining DIN-standard tube connections to equipment with British Standard Parallel Pipe ports. The Din X Mbspp Es Seal configuration incorporates an ES (edge seal) design, which provides a reliable, leak-resistant seal at the DIN tube interface.

Manufactured by Adaptall, the adapter is constructed from steel and measures 45mm in overall length (L1), with a 32mm body width and a 20.5mm L2 length. The straight geometry keeps the connection compact and in-line, suited to installations where space and alignment between differing thread standards are a consideration.

SKU: 5002S-20-08

Supplier Part Number (MPN): 5002S-20-08

Specifications

Brand
adapt-all
Connection Size 1
20 mm
Connection Size 2
1/2 in
Connection Type
Male BSP, Male Metric
Connection Type 1
Male Metric DIN 24 deg Tube
Connection Type 2
Male BSPP Elastomeric Seal
Dimension Standards
BS 5200, DIN 2353, ISO 1179, ISO 8434-1, ISO 8434-6
Dimensions
45 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
32 mm
Material
Steel
Material Construction
Carbon Steel
Series
5002 Series
Thread Size
M30x2 x 1/2-14

Product Questions & Answers (1)

Question by: Rusty Y on Aug 3, 2025, 5:44 PM
Got a piece of equipment running BSPP ports and my tubing is DIN spec, this the right adapter to bridge that gap?
Answer by: Customer Support on Aug 5, 2025, 6:26 AM
That's what this one's for. One end is M30 x 2.0 male DIN tube connection, the other is G 1/2 - 14 male BSPP. Steel construction, straight body, 45mm overall length. The ES edge seal on the DIN side handles the sealing at that interface, so you're not relying on thread compound or tape to keep things tight. If your port and tube sizes match up with those callouts, it'll do the job.
