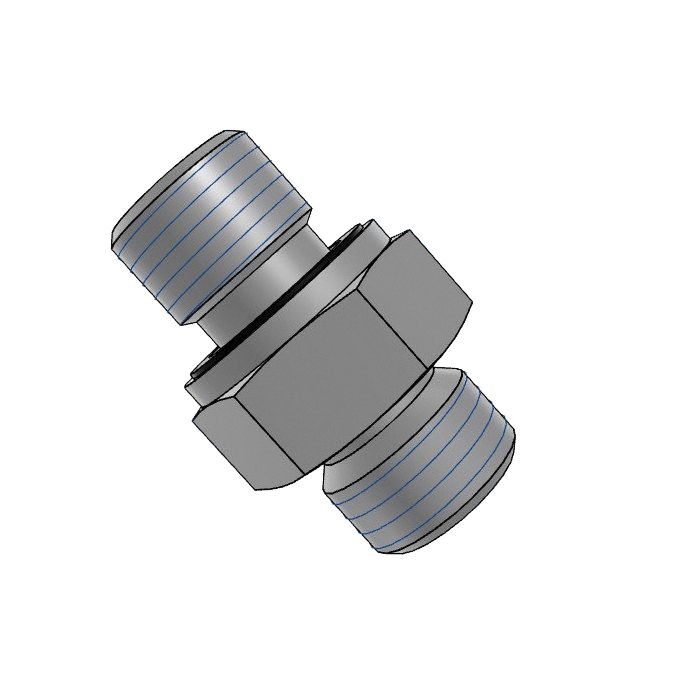

main product photo

Din X Mbspp Es Seal Complete

Ask A Question

Description & Features

Manufactured from steel in a straight configuration, this Adaptall fitting connects a DIN tube end on one side to a male BSPP port on the other, making it a practical solution for mixed-standard hydraulic circuit connections. The DIN side carries an M30 x 2.0 thread at a 20 series size, while the BSPP side is sized at 3/4" with a G 3/4-14 thread form and an ES (elastomeric) seal for reliable port sealing without the need for additional sealant tape or compound.

The Din X Mbspp Es Seal Complete measures 47mm along its primary length, with a 32mm body width and secondary lengths of 20.5mm and 16mm respectively. Adaptall's interchangeable fitting system makes this style well suited to hydraulic assemblies where DIN tube connections must interface with BSPP-ported components such as valves, manifolds, or cylinders.

SKU: 5002S-20-12C

Supplier Part Number (MPN): 5002S-20-12C

Specifications

Brand
adapt-all
Connection Size 1
20 mm
Connection Size 2
3/4 in
Connection Type
Male BSP, Male Metric
Connection Type 1
Male Metric DIN 24 deg Tube
Connection Type 2
Male BSPP Elastomeric Seal
Dimension Standards
BS 5200, DIN 2353, ISO 1179, ISO 8434-1, ISO 8434-6
Dimensions
47 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
32 mm
Material
Steel
Material Construction
Carbon Steel
Series
5002 Series
Thread Size
M30x2 x 3/4-14

Product Questions & Answers (1)

Question by: Rick J on Jun 19, 2025, 9:38 PM
got a valve block with a G 3/4-14 port, will this fitting seal up without me putting tape on the threads
Answer by: Customer Support on Jun 21, 2025, 11:34 AM
With the ES elastomeric seal on the male BSPP side, it seals at the port face rather than on the threads, so you do not need sealant tape or pipe dope for the BSPP connection.
