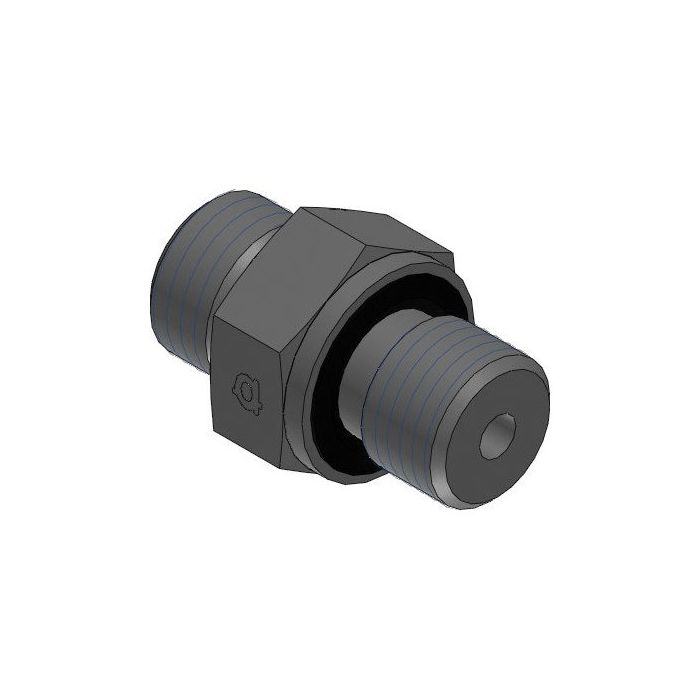

main product photo

Din X Mbspp Es Seal

Ask A Question

Description & Features

This steel straight Adaptall fitting, a Din X Mbspp Es Seal, features a Din Tube connection on side 1 and a Bspp connection on side 2. Side 1 features a M42 X 2.0 male end with a S30 size, while side 2 features a G 1-1/4 - 11 male end with a 1-1/4" size.

The Adaptall Ch Width is 50mm, Adaptall L1 Length is 57mm, Adaptall L2 Length is 23.5mm, and Adaptall L3 Length is 20mm.

SKU: 5002S-30-20

Supplier Part Number (MPN): 5002S-30-20

Specifications

Brand
adapt-all
Connection Size 1
30 mm
Connection Size 2
1-1/4 in
Connection Type
Male BSP, Male Metric
Connection Type 1
Male Metric DIN 24 deg Tube
Connection Type 2
Male BSPP Elastomeric Seal
Dimension Standards
BS 5200, DIN 2353, ISO 1179, ISO 8434-1, ISO 8434-6
Dimensions
57 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Material
Steel
Material Construction
Carbon Steel
Series
5002 Series
Thread Size
M42x2 x 1-1/4-11

Product Questions & Answers (1)

Question by: Tommy S on Mar 4, 2026, 9:37 AM
trying to match up a fitting i pulled off, what are the thread sizes on both ends of this one?
Answer by: Customer Support on Mar 6, 2026, 7:52 AM
On the DIN tube side, it is an M42 x 2.0 male end in size S30. On the BSPP side, it is a G 1-1/4 - 11 male end with a 1-1/4 inch size.
