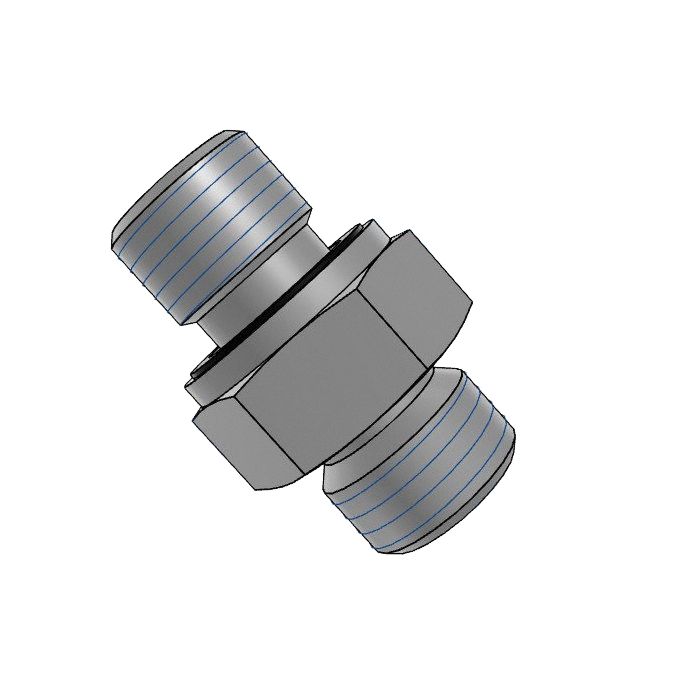

main product photo

Din X Mbspp Es Seal Complete

Ask A Question

Description & Features

This straight Adaptall steel fitting features a DIN tube connection on Side 1 and a Bspp connection on Side 2. The Din X Mbspp Es Seal Complete is designed for hydraulic applications.

It features a Side 1 size of S30 with a M42 X 2.0 callout and a Side 2 size of 1-1/4" with a G 1-1/4 - 11 callout. The Adaptall fitting has a Ch Width of 50mm, an L1 Length of 57mm, an L2 Length of 23.5mm, and an L3 Length of 20mm.

SKU: 5002S-30-20C

Supplier Part Number (MPN): 5002S-30-20C

Specifications

Brand
adapt-all
Connection Size 1
30 mm
Connection Size 2
1-1/4 in
Connection Type
Male BSP, Male Metric
Connection Type 1
Male Metric DIN 24 deg Tube
Connection Type 2
Male BSPP Elastomeric Seal
Dimension Standards
BS 5200, DIN 2353, ISO 1179, ISO 8434-1, ISO 8434-6
Dimensions
57 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Material
Steel
Material Construction
Carbon Steel
Series
5002 Series
Thread Size
M42x2 x 1-1/4-11

Product Questions & Answers (1)

Question by: Wes H on May 29, 2025, 5:27 PM
Got a piece of equipment running a DIN tube line and need to tie into a BSPP port, this a straight shot or does it have some kind of angle to it?
Answer by: Customer Support on May 30, 2025, 6:15 PM
Straight fitting, no angle. One end carries the DIN tube connection at S30 with an M42 x 2.0 thread, and the other side steps over to a 1-1/4 inch BSPP male connection with a G 1-1/4 - 11 thread. If your routing needs a direct in-line adapter between those two standards, this is the right configuration.
