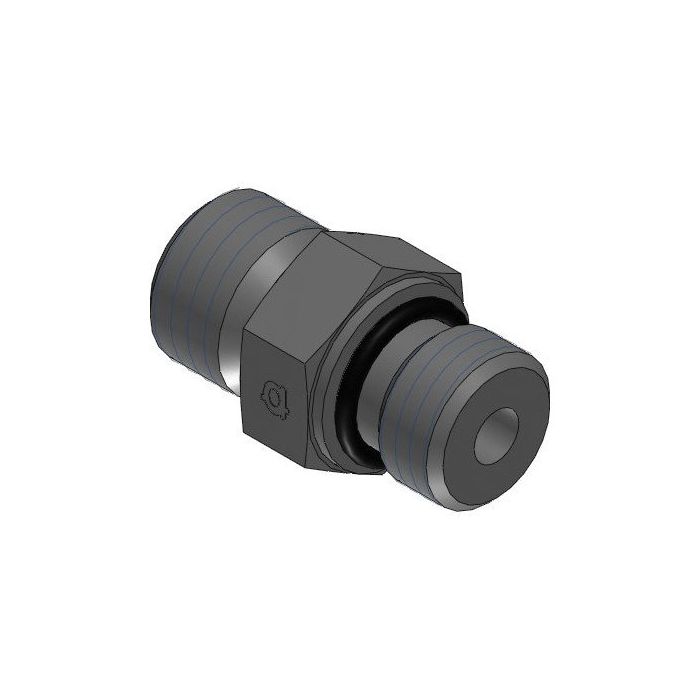

Straight Tube-Male Sae Orb

Ask A Question

Description & Features

Constructed from steel, this straight hydraulic adapter features a DIN tube end on one side (M22 x 1.5, Size L15, Male) and a 3/4-16 UNF SAE O-Ring Boss port on the other (1/2", Male), making it well suited for connecting metric tube lines to SAE ORB ports in hydraulic circuits. The Straight Tube-Male Sae Orb is manufactured by Adaptall America and follows a straight configuration with no angular offset. Key dimensional references include a CH width of 24mm, an L1 length of 32mm, an L2 length of 14mm, and an L3 length of 11mm. The steel construction provides reliable performance under the pressure demands typical of industrial hydraulic systems.

SKU: 5006L-15-08

Supplier Part Number (MPN): 5006L-15-08

Specifications

Connection Size 1
L15
Connection Size 2
1/2 in
Connection Type
Male Metric, Male SAE ORB
Connection Type 1
Male Metric DIN 24 deg Tube
Connection Type 2
Male SAE ORB
Dimension Standards
DIN 2353, SAE J1926
Dimensions
32 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
24 mm
Material
Steel
Material Construction
Carbon Steel
Series
5006 Series
Thread Size
M22x1.5 x 3/4-16

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Eddie D on Nov 11, 2025, 6:42 AM
what's the thread on the tube side of this fitting, is it metric or standard?
Answer by: Customer Support on Nov 13, 2025, 6:12 AM
The tube end is metric. It runs M22 x 1.5 thread, sized L15, so it's built to mate with DIN-spec tube lines on that side. The other end steps over to a 3/4-16 UNF SAE O-Ring Boss port, which is the standard ORB thread you'd see on most North American hydraulic components. That's the whole point of this adapter, bridging a metric tube line into an SAE ORB port without needing extra fittings in between.
