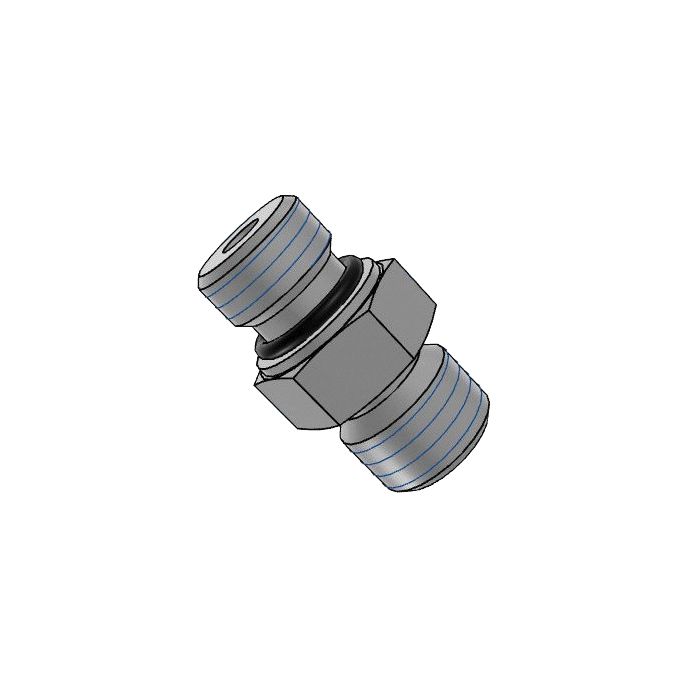

Din X Male Sae O'Ring Complete

Description & Features

Constructed from steel in a straight configuration, this adapter bridges a DIN tube connection on one end and a male SAE O-Ring Boss fitting on the other. Side one presents an M22 x 1.5 male DIN tube thread (L15 sizing), while side two terminates in a 7/8-14 UNF male ORB thread sized for 5/8" line. This combination makes the Din X Male Sae O'Ring Complete a practical solution for cross-standard hydraulic circuit connections where DIN and SAE ports must interface directly.

Key dimensional references include a 27mm wrench width, an L1 length of 35mm, and shorter L2 and L3 segments of 15mm and 13mm respectively. Manufactured by Adaptall, this straight adapter suits hydraulic systems requiring reliable metal-to-metal and O-ring face seal integrity across differing thread standards.

SKU: 5006L-15-10C

Supplier Part Number (MPN): 5006L-15-10C

Specifications

CH Width 27mm	L1 Length 35mm	L2 Length 15mm	L3 Length 13mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M22 X 1.5	Side 1 Gender M	Side 1 Size L15	Side 1 Type Din Tube	Side 2 Callout 7/8 - 14 UNF	Side 2 Gender M	Side 2 Size 5/8"	Side 2 Type Orb-Sae	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5006L-15-10C	Product Weight 0.18 lbs

Product Questions & Answers (2)

Question by: Dwight R on Dec 7, 2025, 6:56 AM

got a valve block with an M22 x 1.5 DIN tube port. is this the straight adapter that’ll jump me over to a 7/8-14 ORB male?

Answer by: Customer Support on Dec 8, 2025, 6:58 AM

Built for that exact cross-over, it has an M22 x 1.5 male DIN tube end (L15) on one side and a 7/8-14 UNF male SAE O-Ring Boss end on the other, in a straight steel body.

Question by: Steve P on Mar 22, 2026, 5:09 PM

Got a machine running DIN tube fittings on one end and SAE O-ring ports on the other. Will this adapter actually handle that crossover without needing extra pieces in between?

Answer by: Customer Support on Mar 23, 2026, 6:42 PM

That's the situation this part is built for. One end is M22 x 1.5 male DIN tube thread at L15 sizing, and the other terminates in a 7/8-14 UNF male ORB thread for a 5/8" line. Straight configuration, no additional couplings needed. Steel construction keeps the connection solid on both the metal-to-metal DIN side and the O-ring face seal on the SAE side. If your ports match those specs, it drops right in as a single-piece solution.
