Din X Male Npt Complete

Description & Features

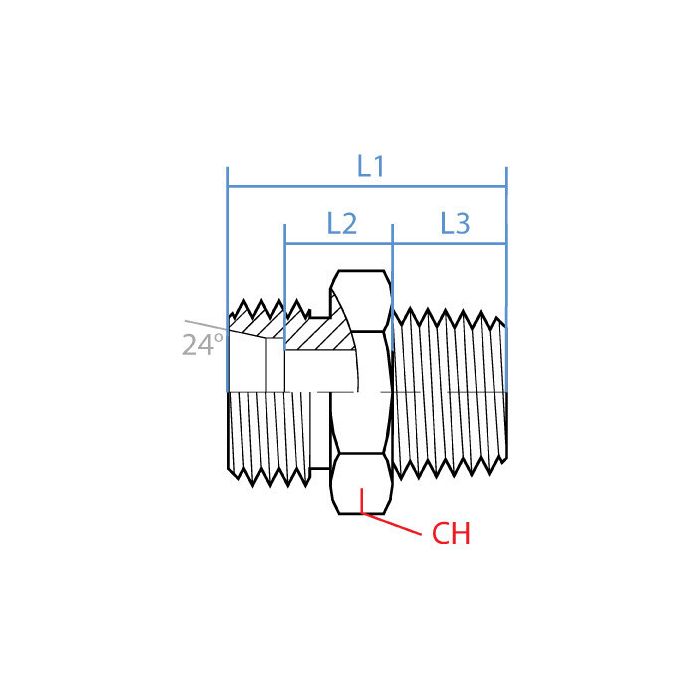

ADAPTALL America's steel fitting ensures long-lasting performance and precise connections for industrial applications. This Din X Male Npt Complete features a straight design with a CH width of 12mm L1 length of 24mm L2 length of 7mm and L3 length of 10mm.

Designed with M12 x 1.5 Din Tube on one side and 1/8 - 27 NPTF on the other it offers male connectors on both ends. This component is engineered for reliability and efficiency supporting industrial demands with its adaptable construction.

Supplier Part Number: 5007L-06-02C

Specifications

CH Width 12mm	L1 Length 24mm	L2 Length 7mm	L3 Length 10mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M12 X 1.5	Side 1 Gender M	Side 1 Size L06	Side 1 Type Din Tube	Side 2 Callout 1/8 - 27 NPTF	Side 2 Gender M	Side 2 Size 1/8"	Side 2 Type Npt	Alternate Part Numbers Alternate Part Number MI-08733761, Alternate Part Number MINO-03671X96006	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5007L-06-02C	Product Weight 0.02 lbs

Product Questions & Answers (3)

Question by: Earl M on May 30, 2025, 7:50 PM

what's the thread size on the NPT end of this fitting, trying to make sure it'll match up to a 1/8 inch port on a small hydraulic valve

Answer by: Customer Support on Jun 1, 2025, 6:09 AM

The NPT side runs 1/8-27 NPTF, so it'll mate up to a standard 1/8 inch port without any issue. The DIN tube side is M12 x 1.5, and both ends are male. Overall length on the fitting is 24mm at L1, with the straight body keeping everything in line. Steel construction throughout.

Question by: Larry R on Nov 5, 2025, 9:20 PM

got a port that’s 1/8 - 27 NPTF, will this fitting screw in and still give me a DIN tube end?

Answer by: Customer Support on Nov 7, 2025, 6:33 AM

On the NPT side, it is a 1/8 - 27 NPTF male thread. The other end is a male M12 x 1.5 DIN tube connection, so it works as an adapter between those two standards in a straight fitting.

Question by: Gary G on Sep 13, 2025, 9:07 AM

Hey, will this here fitting work with my existing M12 x 1.5 DIN tube setup? Just wanna make sure before I order.

Answer by: Customer Support on Sep 15, 2025, 6:03 AM

This Adaptall fitting is designed to connect directly to M12 x 1.5 DIN tube systems on one side. The other side adapts to a 1/8 - 27 NPTF connection, offering versatility for different setups.
