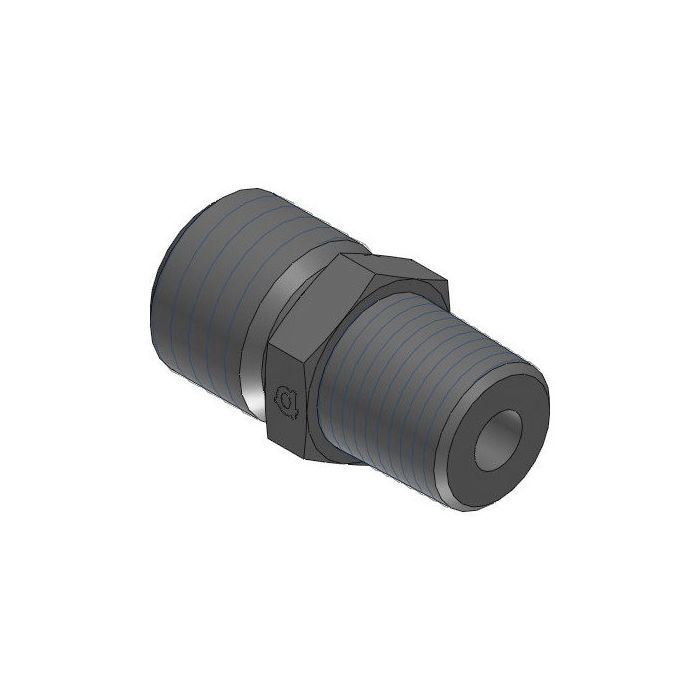

Din X Male Npt

Description & Features

This Adaptall straight fitting is a Din X Male Npt adapter, featuring a M12 X 1.5 Din Tube connection on one side and a 1/4 - 18 NPTF male connection on the other. It has a Side 1 Size of L06 and a Side 2 Size of 1/4".

Constructed from durable steel, this Din X Male Npt adapter offers reliable performance in demanding hydraulic applications. The Adaptall Ch Width is 17mm, Adaptall L1 Length is 30mm, Adaptall L2 Length is 8mm, and Adaptall L3 Length is 15mm.

SKU: 5007L-06-04

Supplier Part Number (MPN): 5007L-06-04

Specifications

Brand adapt-all	Connection Size 1 6 mm	Connection Size 2 1/4 in	Connection Type Male Metric, MNPT	Connection Type 1 Male Metric DIN 24 deg Tube	Connection Type 2 Male NPT	Dimension Standards ANSI B1.20.3, DIN 2353, ISO 8434-1	Dimensions 30 mm L	Finish Zinc-Plated	Fitting Type Adapter	Hex Size 17 mm	Material Steel	Material Construction Carbon Steel	Series 5007 Series	Thread Size M12x1.5 x 1/4-18

Product Questions & Answers (3)

Question by: Judy A on Mar 1, 2026, 6:11 AM

So, this here adapter, it's steel, right? Good for hydraulic stuff, not gonna rust out on me?

Answer by: Customer Support on Mar 2, 2026, 3:41 PM

Constructed from steel, this Adaptall fitting should provide reliable performance in hydraulic applications.

Question by: Judy C on Feb 26, 2026, 7:56 AM

Got a DIN tube line running M12 x 1.5 and need to tie into a 1/4 inch NPT port, this the right piece for that?

Answer by: Customer Support on Feb 27, 2026, 3:37 PM

That's what this fitting handles. One end is M12 x 1.5 DIN tube male, the other is 1/4-18 NPTF male, so it bridges those two connection types in a straight run. Steel construction, 17mm wrench flat, and the overall length comes out to 30mm on the L1 dimension. If your tube side is L06 and your port is a 1/4 inch NPT, this one fits the bill.

Question by: Floyd A on May 24, 2025, 8:12 AM

trying to hook a DIN tube line to a 1/4 NPT port, is this the right adapter?

Answer by: Customer Support on May 25, 2025, 6:05 PM

On the DIN side, it’s an M12 x 1.5 male DIN tube connection (Side 1 size L06). The other end is a 1/4 - 18 NPTF male thread (Side 2 size 1/4 inch), so it’s meant for exactly that kind of DIN-to-NPT hookup.
