Din X Male Npt Complete

Description & Features

Engineered with precision the Din X Male Npt Complete by Adaptall America is an essential component for various industrial applications. Made from high-grade steel this straight fitting ensures long-lasting durability and dependable performance.

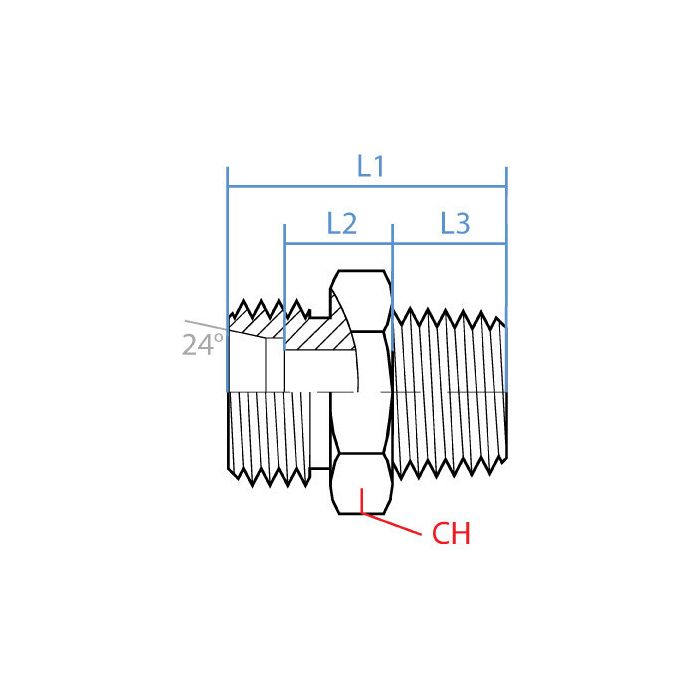

This fitting features an M16 x 1.5 male DIN tube configuration on Side 1 and a 1/4 - 18 NPTF male connection on Side 2 for seamless compatibility with mechanical systems. The precise dimensions include a length of 31mm (L1) 9mm (L2) and 15mm (L3) along with a 17mm wrench width for a secure fit.

Notably this product does not have any adjustable parts color coding check valves or thread sealant requirements simplifying the installation process and ensuring consistent system performance.

Supplier Part Number: 5007L-10-04C

Specifications

CH Width 17mm	L1 Length 31mm	L2 Length 9mm	L3 Length 15mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M16 X 1.5	Side 1 Gender M	Side 1 Size L10	Side 1 Type Din Tube	Side 2 Callout 1/4 - 18 NPTF	Side 2 Gender M	Side 2 Size 1/4"	Side 2 Type Npt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5007L-10-04C	Product Weight 0.07 lbs

Product Questions & Answers (3)

Question by: Lance P on Nov 16, 2025, 12:44 PM

Got an M16 x 1.5 DIN tube line coming off a hydraulic block and need to tie into a 1/4" NPT port, this fitting do that job?

Answer by: Customer Support on Nov 17, 2025, 2:38 PM

That's what this one's built for. Side 1 is an M16 x 1.5 male DIN tube connection and Side 2 is a 1/4-18 NPTF male thread, so it bridges those two configurations in a single straight fitting. Steel construction, 31mm overall length, and a 17mm wrench flat to torque it down clean. No thread sealant is required on this fitting, which keeps the install straightforward.

Question by: Howard G on May 7, 2025, 4:36 PM

Reckon this fitting would hold up okay in a hydraulic setup for farm equipment?

Answer by: Customer Support on May 9, 2025, 7:42 AM

This straight fitting, made from high-grade steel, is designed for durability and dependable performance in various industrial applications, which would include farm equipment using hydraulics.

Question by: Neil C on Jan 8, 2026, 12:21 PM

trying to hook up an m16 x 1.5 din tube line to a 1/4-18 nptf port. is this the right adapter?

Answer by: Customer Support on Jan 9, 2026, 9:58 PM

For that combo, it matches up: Side 1 is an M16 x 1.5 male DIN tube connection and Side 2 is a 1/4 - 18 NPTF male thread. It is a straight steel fitting.
