Din X Male Npt

Description & Features

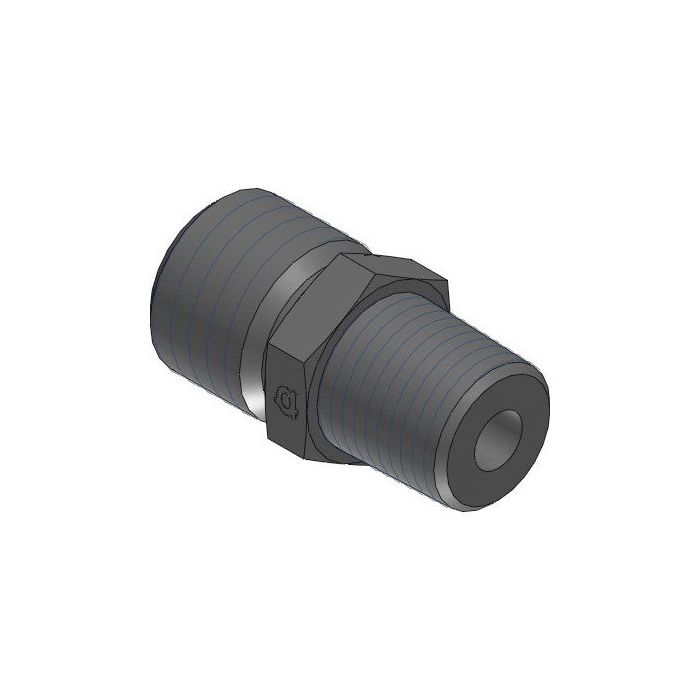

This Adaptall straight fitting is a Din X Male NPT. It features a Din Tube connection on Side 1 with a size of L10 and M16 x 1.5 callout. Side 2 features a 3/8" NPT connection with a 3/8 - 18 NPTF callout.

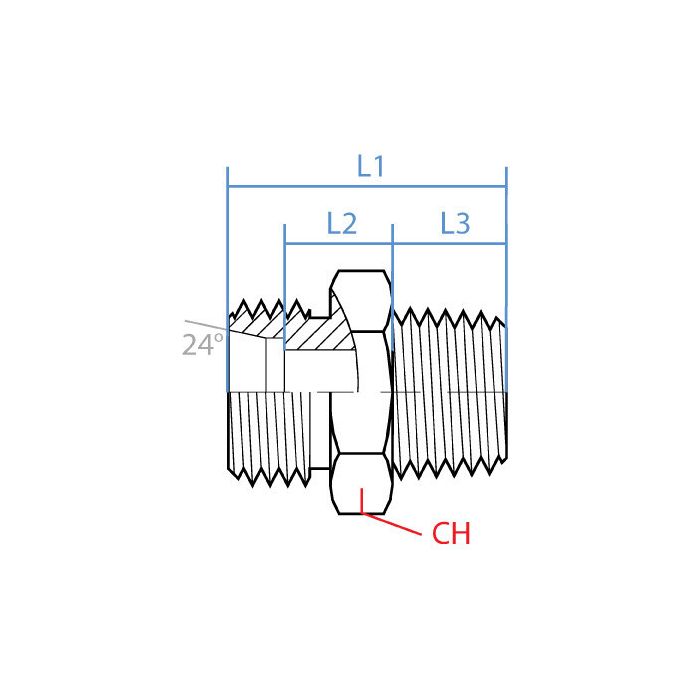

The Din X Male Npt is constructed from steel. Key dimensions include a 19mm wrench flat, L1 length of 32mm, L2 length of 10mm, and L3 length of 15mm.

SKU: 5007L-10-06

Supplier Part Number (MPN): 5007L-10-06

Specifications

Brand adapt-all	Connection Size 2 3/8 in	Connection Type Male Metric, MNPT	Connection Type 1 Male Metric DIN 24 deg Tube	Connection Type 2 Male NPT	Dimension Standards ANSI B1.20.3, DIN 2353, ISO 8434-1	Dimensions 32 mm L	Finish Zinc-Plated	Fitting Type Adapter	Hex Size 19 mm	Material Steel	Material Construction Carbon Steel	Series 5007 Series	Thread Size M16x1.5 x 3/8-18

Product Questions & Answers (3)

Question by: Clint P on Dec 10, 2025, 8:11 PM

What size wrench do I need to get this fitting torqued down proper, and how long is the overall body on it?

Answer by: Customer Support on Dec 12, 2025, 6:21 AM

You'll need a 19mm wrench for this one. As for length, the L1 dimension runs 32mm, with L2 at 10mm and L3 at 15mm. Straight fitting, steel construction, so it's built to handle a solid torque without any drama.

Question by: Roger S on May 8, 2025, 7:25 AM

got a DIN tube line with the M16 x 1.5 end on it, will this screw into a 3/8 NPT port or am i mixing stuff up

Answer by: Customer Support on May 10, 2025, 6:50 AM

On one side you have a DIN tube male connection called out as L10 with M16 x 1.5, and on the other side you have a 3/8 inch male NPT connection called out as 3/8 - 18 NPTF. It is a straight steel adapter meant to bridge those two thread types.

Question by: Hugh C on Oct 6, 2025, 8:50 AM

Will this fitting hold up to hydraulic pressure, or is it just for low-pressure stuff?

Answer by: Customer Support on Oct 8, 2025, 7:08 AM

This Adaptall straight fitting is constructed from steel, making it suitable for hydraulic applications within the appropriate pressure ratings for steel fittings.
