Din X Male Npt

Description & Features

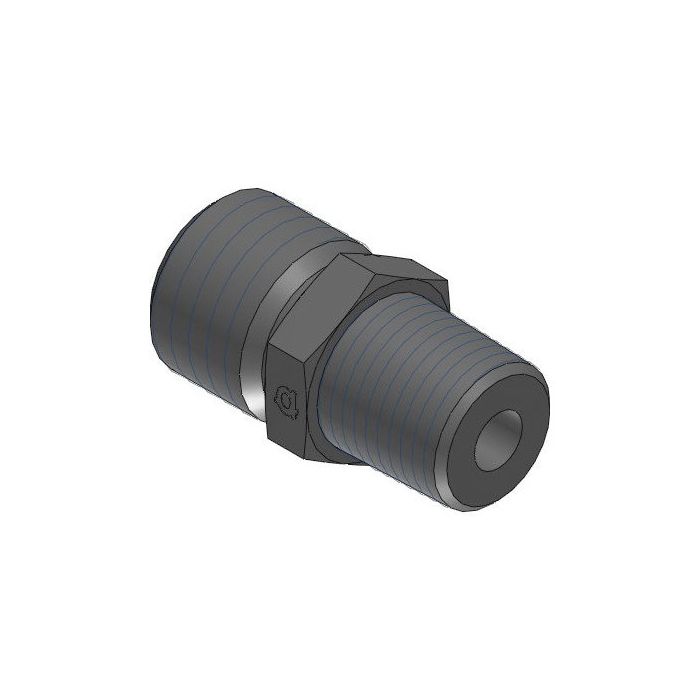

This steel Din X Male Npt adapter features a M18 X 1.5 Din Tube connection on one side and a 1/4 - 18 NPTF connection on the other. The Adaptall fitting has a straight shape, making it suitable for various hydraulic applications.

The Side 1 (Din Tube) has a L12 size, while the Side 2 (Npt) has a 1/4" size. The Adaptall Ch Width is 19mm, Adaptall L1 Length is 32mm, Adaptall L2 Length is 10mm, and Adaptall L3 Length is 15mm.

SKU: 5007L-12-04

Supplier Part Number (MPN): 5007L-12-04

Specifications

Brand adapt-all	Connection Size 1 L12	Connection Size 2 1/4 in	Connection Type Male Metric, MNPT	Connection Type 1 Male Metric DIN 24 deg Tube	Connection Type 2 Male NPT	Dimension Standards ANSI B1.20.3, DIN 2353, ISO 8434-1	Dimensions 32 mm L	Finish Zinc-Plated	Fitting Type Adapter	Hex Size 19 mm	Material Steel	Material Construction Carbon Steel	Series 5007 Series	Thread Size M18x1.5 x 1/4-18

Product Questions & Answers (1)

Question by: Rod S on Jan 7, 2026, 7:19 PM

Will this fitting hold up okay for general hydraulic use, you reckon?

Answer by: Customer Support on Jan 9, 2026, 7:20 AM

Built from steel, this DIN X Male NPT adapter is certainly made for various hydraulic applications.
