Din X Male Npt

Description & Features

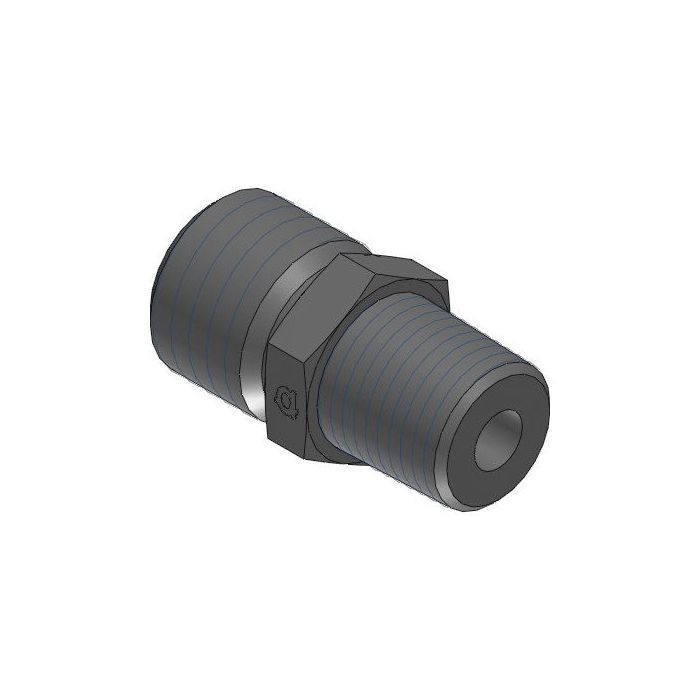

This steel straight fitting adapts a DIN tube to a male NPT thread.

It features a M18 X 1.5 DIN tube connection on one side (L12 size) and a 3/8" male NPT thread on the other (3/8 - 18 NPTF callout). The Adaptall Din X Male Npt fitting has a 19mm wrench flat and measures 32mm in overall length (L1), with a 10mm (L2) and 15mm (L3) length.

SKU: 5007L-12-06

Supplier Part Number (MPN): 5007L-12-06

Specifications

Brand adapt-all	Connection Size 1 L12	Connection Size 2 3/8 in	Connection Type Male Metric, MNPT	Connection Type 1 Male Metric DIN 24 deg Tube	Connection Type 2 Male NPT	Dimension Standards ANSI B1.20.3, DIN 2353, ISO 8434-1	Dimensions 32 mm L	Finish Zinc-Plated	Fitting Type Adapter	Hex Size 19 mm	Material Steel	Material Construction Carbon Steel	Series 5007 Series	Thread Size M18x1.5 x 3/8-18

Product Questions & Answers (3)

Question by: Kirk H on Nov 30, 2025, 7:57 PM

Is this the right fitting to go from a metric DIN tube to a regular NPT pipe thread?

Answer by: Customer Support on Dec 1, 2025, 9:14 PM

Yes, that's exactly what it's for. This steel fitting adapts a DIN tube to a male NPT thread. On one side you have a M18 X 1.5 DIN tube connection (L12 size), and on the other a 3/8" male NPT thread.

Question by: Diane P on Dec 10, 2025, 6:47 PM

Trying to hook a DIN tube up to a 3/8 NPT port, is this the right adapter?

Answer by: Customer Support on Dec 12, 2025, 6:44 AM

For that kind of hookup, it’s a straight steel adapter with an M18 x 1.5 DIN tube connection on one end (L12 size) and a 3/8 inch male NPTF thread on the other (3/8 - 18 NPTF).

Question by: Todd S on Jul 7, 2025, 5:05 PM

fitting's got a M18 x 1.5 DIN tube side and I need to hook into a 3/8 NPT port, this the right one for that?

Answer by: Customer Support on Jul 9, 2025, 7:10 AM

That's what this fitting does. One end is the M18 x 1.5 DIN tube connection in L12 size, and the other end is a 3/8-18 NPTF male thread. Both sides are male, so make sure your NPT port is female on the receiving end. It's a straight adapter, no bends or offsets, just a clean inline connection between those two thread types.
