Din X Male Npt

Description & Features

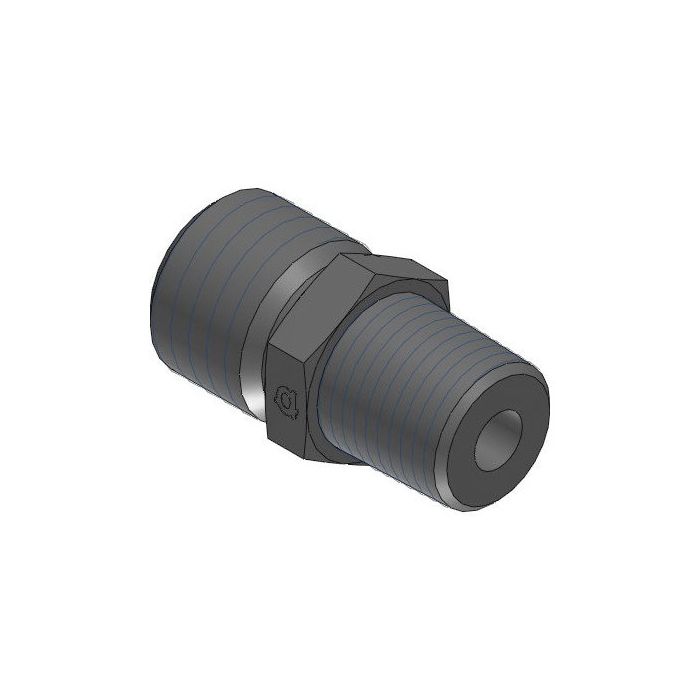

This straight Adaptall America Din X Male Npt fitting is constructed of steel for durability and reliable performance.

This Din Tube to NPT adapter features a M18 X 1.5 side 1 callout, side 1 male gender, and L12 side 1 size. Side 2 features a 1/2 - 14 NPTF callout, male gender, and 1/2" size.

Additional specifications include a 24mm Adaptall Ch Width, 37mm Adaptall L1 Length, 10mm Adaptall L2 Length, and 20mm Adaptall L3 Length.

SKU: 5007L-12-08

Supplier Part Number (MPN): 5007L-12-08

Specifications

Brand adapt-all	Connection Size 1 L12	Connection Size 2 1/2 in	Connection Type Male Metric, MNPT	Connection Type 1 Male Metric DIN 24 deg Tube	Connection Type 2 Male NPT	Dimension Standards ANSI B1.20.3, DIN 2353, ISO 8434-1	Dimensions 37 mm L	Finish Zinc-Plated	Fitting Type Adapter	Hex Size 24 mm	Material Steel	Material Construction Carbon Steel	Series 5007 Series	Thread Size 1/2-14 x M18x1.5

Product Questions & Answers (1)

Question by: Wes P on Dec 19, 2025, 7:43 AM

what's the thread size on the DIN side of this fitting? trying to match it up to some metric tube ends we got on a older press

Answer by: Customer Support on Dec 20, 2025, 9:33 AM

The DIN side runs M18 x 1.5 male, with an L12 size callout. That's a pretty common metric thread pitch for DIN tube fittings, so it should line up with standard L-series DIN connections on that press without any trouble.
