Din X Male Npt

Description & Features

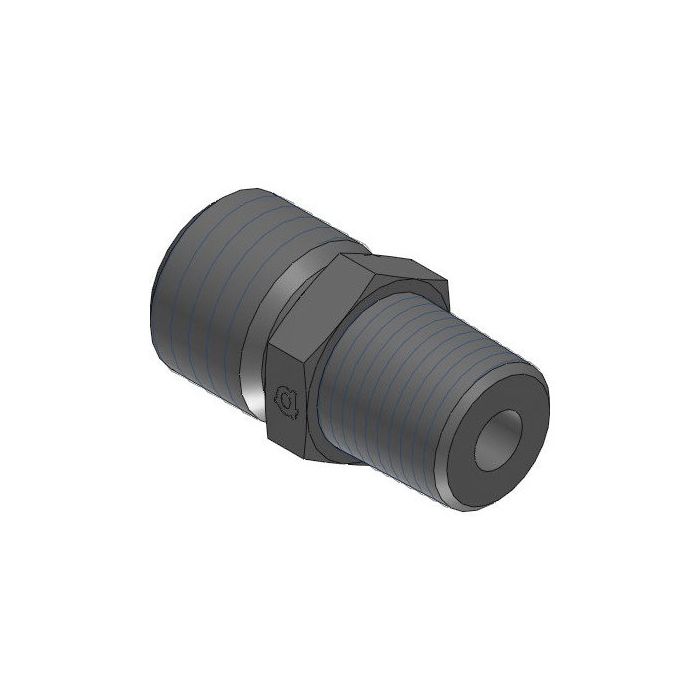

Constructed from steel in a straight configuration, this Adaptall America adapter features an M22 x 1.5 DIN tube male connection on one end and a 1/2"-14 NPTF male thread on the other. The Din X Male Npt design makes it well-suited for connecting DIN-standard tube fittings to NPT-threaded ports in hydraulic systems and industrial fluid power applications.

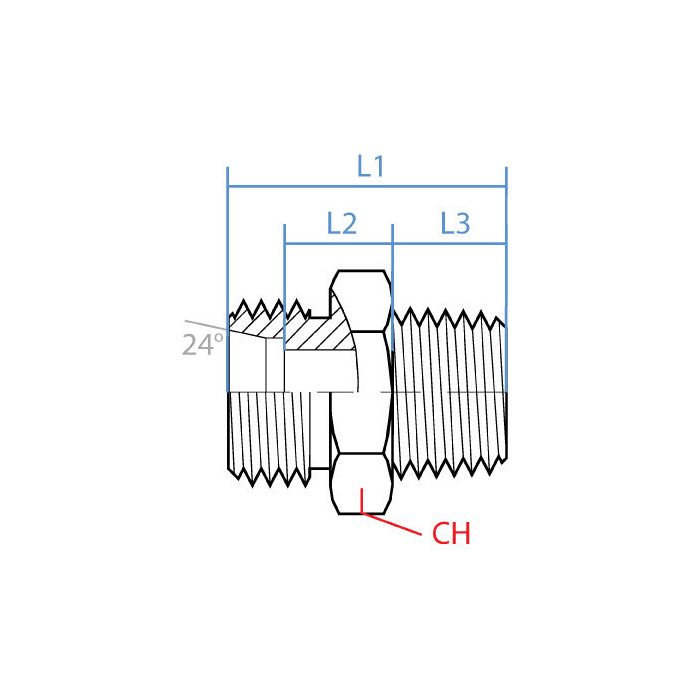

Key dimensional data includes a 24mm CH width, an L1 length of 38mm, an L2 length of 11mm, and an L3 length of 20mm. The L15 Side 1 sizing and 1/2" Side 2 sizing provide a reliable cross-standard connection where DIN and NPT thread types must interface.

SKU: 5007L-15-08

Supplier Part Number (MPN): 5007L-15-08

Specifications

Brand adapt-all	Connection Size 1 L15	Connection Size 2 1/2 in	Connection Type Male Metric, MNPT	Connection Type 1 Male Metric DIN 24 deg Tube	Connection Type 2 Male NPT	Dimension Standards ANSI B1.20.3, DIN 2353, ISO 8434-1	Dimensions 38 mm L	Finish Zinc-Plated	Fitting Type Adapter	Hex Size 24 mm	Material Steel	Material Construction Carbon Steel	Series 5007 Series	Thread Size M22x1.5 x 1/2-14

Product Questions & Answers (3)

Question by: Bonnie H on Feb 7, 2026, 7:30 PM

Will this here fitting hold up okay in a hydraulic setup where things get pretty warm?

Answer by: Customer Support on Feb 8, 2026, 8:16 PM

Constructed from steel, this adapter is suitable for typical hydraulic applications, but you'll want to check your temperature requirements against the steel's limitations to ensure it will meet the demands of your system.

Question by: Harold B on Apr 5, 2026, 12:55 PM

trying to hook a DIN tube fitting into a 1/2 NPTF port, is this the right adapter?

Answer by: Customer Support on Apr 6, 2026, 5:08 PM

For that kind of cross over connection, it matches up a DIN tube male end (M22 x 1.5, L15) to a 1/2 inch 14 NPTF male thread, in a straight steel adapter.

Question by: Larry P on Apr 11, 2025, 3:48 PM

got a DIN tube line coming off a hydraulic valve bank and need to tie into a 1/2" NPT port on a manifold block, this the right adapter for that?

Answer by: Customer Support on Apr 13, 2025, 10:29 AM

that setup is exactly what this part handles. One end is an M22 x 1.5 DIN tube male, and the other is a 1/2"-14 NPTF male thread, so it bridges that DIN-to-NPT gap in a straight shot. Steel construction, straight body, 38mm overall on the L1 length. If your manifold port is 1/2" NPT and your tube fitting is DIN standard at that M22 x 1.5 thread size, this adapter connects the two directly.
