Din X Male Npt

Description & Features

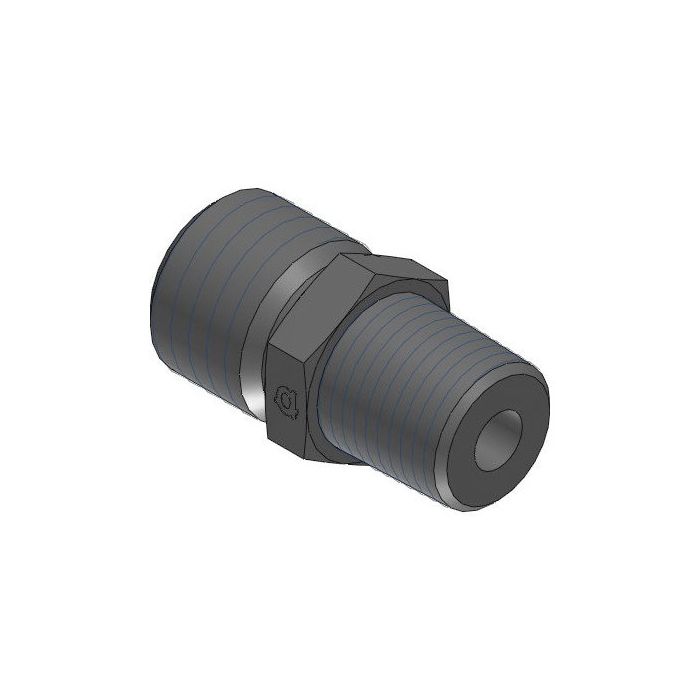

Manufactured from steel in a straight configuration, this Adaptall DIN x Male NPT adapter connects a DIN tube end (M26 x 1.5 thread) on one side to a 1/2"-14 NPTF male thread on the other. The DIN side is sized at L18, while the NPT side measures 1/2". With a body length of 39mm (L1) and a hex width of 27mm, the adapter is suited for inline hydraulic connections where DIN tube fittings must interface with NPT-ported components.

The Din X Male Npt is a practical solution for mixed-standard hydraulic assemblies, bridging metric DIN tube connections with inch-based NPT ports commonly found on pumps, valves, and manifolds. Steel construction provides the durability expected in high-pressure hydraulic environments.

SKU: 5007L-18-08

Supplier Part Number (MPN): 5007L-18-08

Specifications

Brand adapt-all	Connection Size 1 18 mm	Connection Size 2 1/2 in	Connection Type Male Metric, MNPT	Connection Type 1 Male Metric DIN 24 deg Tube	Connection Type 2 Male NPT	Dimension Standards ANSI B1.20.3, DIN 2353, ISO 8434-1	Dimensions 39 mm L	Finish Zinc-Plated	Fitting Type Adapter	Hex Size 27 mm	Material Steel	Material Construction Carbon Steel	Series 5007 Series	Thread Size M26x1.5 x 1/2-14

Product Questions & Answers (2)

Question by: Dustin K on Jul 3, 2025, 6:31 AM

got a din tube end that’s M26 x 1.5, will this adapter screw right on and still give me 1/2 npt on the other side?

Answer by: Customer Support on Jul 5, 2025, 6:23 AM

Side 1 is a DIN tube connection with an M26 x 1.5 male thread (size L18), and side 2 is a 1/2 inch 14 NPTF male thread. It is meant for exactly that kind of mixed setup where a metric DIN tube end has to tie into a 1/2 inch NPT port.

Question by: Lee W on Jul 4, 2025, 12:39 PM

Got a pump with a 1/2 inch NPT port and the line coming off it runs DIN tube fittings, this adapter gonna bridge that gap straight shot?

Answer by: Customer Support on Jul 5, 2025, 8:41 PM

That's exactly what this one's built for. One end threads into your 1/2"-14 NPTF port on the pump, and the other side picks up the DIN tube connection at M26 x 1.5 with an L18 sizing. It runs straight through with no offset, so inline hydraulic connections stays clean without any awkward bends or routing changes. Steel construction holds up fine in high-pressure hydraulic work, and the 27mm hex gives you a solid wrench flat to torque it down properly.
