Din X Male Npt Complete

Description & Features

The Din X Male Npt Complete is a robust adapter designed by Adaptall America known for its precision engineering and durability in industrial environments.

The adapter is constructed from high-quality steel ensuring durability and reliable performance.

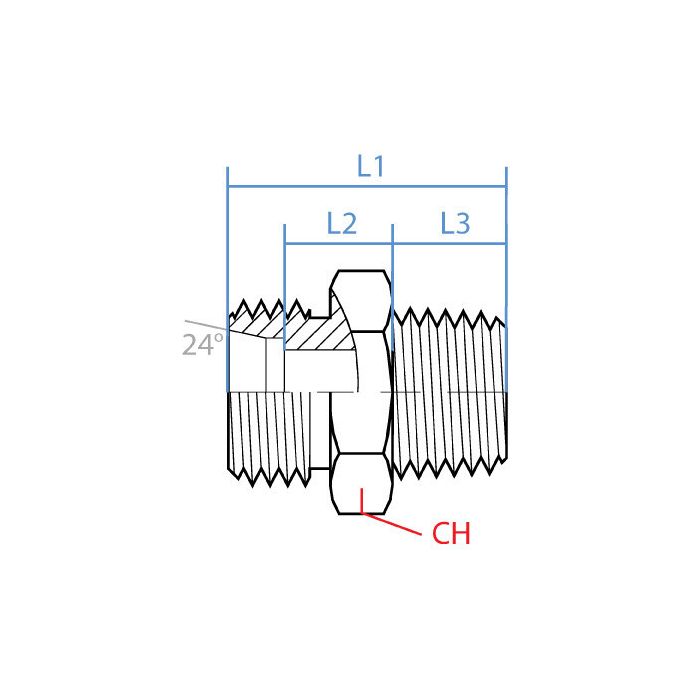

One end of the adapter features an M26 x 1.5 Din Tube connection while the opposite end incorporates a 1/2 - 14 NPTF connection making it versatile for various applications. The dimensions of the adapter are a CH width of 27mm an L1 length of 39mm an L2 length of 11.5mm and an L3 length of 20mm.

This product is straightforward and reliable devoid of additional complexities such as adjustable ends check valves or color coding. Installation and use are simplified with no need for extra tools like mandrels or thread sealants.

MPN: 5007L-18-08C

Supplier Part Number: 5007L-18-08C

Specifications

CH Width 27mm	L1 Length 39mm	L2 Length 11.5mm	L3 Length 20mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M26 X 1.5	Side 1 Gender M	Side 1 Size L18	Side 1 Type Din Tube	Side 2 Callout 1/2 - 14 NPTF	Side 2 Gender M	Side 2 Size 1/2"	Side 2 Type Npt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5007L-18-08C	Product Weight 0.33 lbs

Product Questions & Answers (2)

Question by: Hubert J on Jan 12, 2026, 1:40 PM

Got a system running M26 x 1.5 DIN tube fittings on one end and need to tie into a 1/2 inch NPTF port, this adapter cover that transition?

Answer by: Customer Support on Jan 14, 2026, 8:51 AM

That's what this one's built for. One side is M26 x 1.5 male DIN tube, the other is 1/2-14 NPTF male, so it bridges those two thread standards in a straight configuration. Steel construction, no adjustable ends or check valves involved, just a clean fixed adapter. Part number is 5007L-18-08C if you need to confirm it against your parts list.

Question by: Rick H on Mar 14, 2026, 4:50 PM

Reckon this adapter will hold up okay in a hydraulic setup?

Answer by: Customer Support on Mar 16, 2026, 8:44 AM

Steel construction makes this adapter a solid choice for hydraulic applications, offering both durability and reliable performance under pressure.
