Din X Male Npt

Description & Features

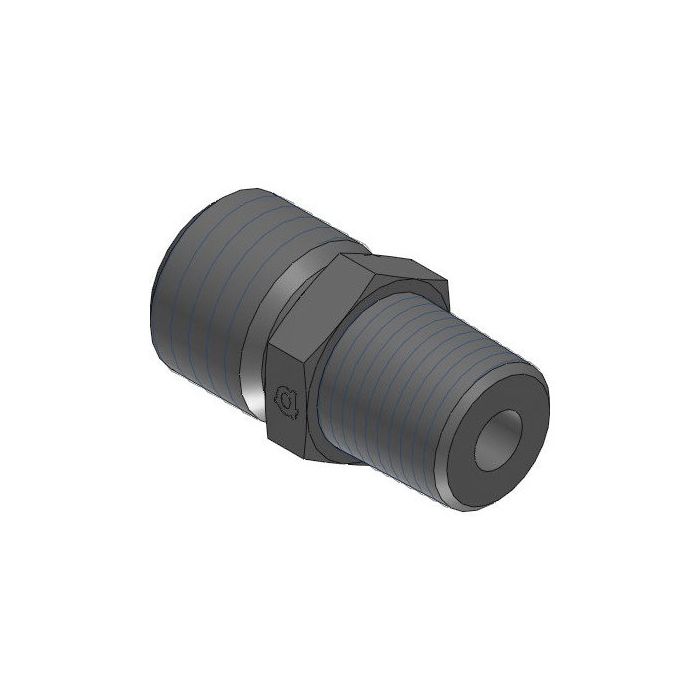

This straight Adaptall America Din X Male Npt fitting features a M30 x 2.0 Din Tube Side 1 connection and a 3/4" - 14 NPTF Side 2 connection. Constructed of steel, this Adaptall fitting has a Side 1 gender of Male and a Side 2 gender of Male.

The Adaptall Ch Width is 32mm. Side 1 Size is L22. Adaptall L1 Length is 41mm. Adaptall L2 Length is 13.5mm. Adaptall L3 Length is 20mm.

SKU: 5007L-22-12

Supplier Part Number (MPN): 5007L-22-12

Specifications

Brand adapt-all	Connection Size 1 L22	Connection Size 2 3/4 in	Connection Type Male Metric, MNPT	Connection Type 1 Male Metric DIN 24 deg Tube	Connection Type 2 Male NPT	Dimension Standards ANSI B1.20.3, DIN 2353, ISO 8434-1	Dimensions 41 mm L	Finish Zinc-Plated	Fitting Type Adapter	Hex Size 32 mm	Material Steel	Material Construction Carbon Steel	Series 5007 Series	Thread Size M30x2 x 3/4-14

Product Questions & Answers (1)

Question by: Clint B on Oct 30, 2025, 4:51 PM

Got a DIN tube fitting on one side and need to tie into 3/4 NPT pipe on the other end. this the right part for that?

Answer by: Customer Support on Oct 31, 2025, 7:32 PM

That's what this fitting does. One end is an M30 x 2.0 male DIN tube connection sized for a 22mm tube, and the other end is a 3/4-14 NPTF male thread. Straight body, steel construction, so it'll hold up in a standard hydraulic line without any fuss.
