Din X Male Npt Complete

Description & Features

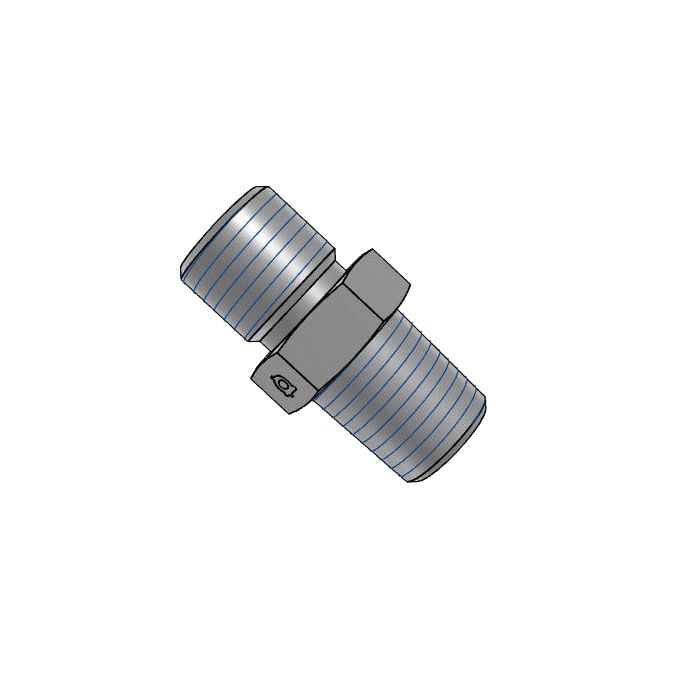

This straight Adaptall fitting connects a DIN tube to a male NPT thread. It adapts a M18 X 1.5 DIN tube to a 3/8 - 18 NPTF male connection.

The Din X Male Npt Complete is constructed from steel for durability. Side 1 has a S10 size, while Side 2 has a 3/8" size. The Adaptall Ch Width is 19mm, Adaptall L1 Length is 35mm, Adaptall L2 Length is 12.5mm and Adaptall L3 Length is 15mm.

SKU: 5007S-10-06C

Supplier Part Number (MPN): 5007S-10-06C

Specifications

Brand adapt-all	Connection Size 2 3/8 in	Connection Type Male Metric, MNPT	Connection Type 1 Male Metric DIN 24 deg Tube	Connection Type 2 Male NPT	Dimension Standards ANSI B1.20.3, DIN 2353, ISO 8434-1	Dimensions 35 mm L	Finish Zinc-Plated	Fitting Type Adapter	Hex Size 19 mm	Material Steel	Material Construction Carbon Steel	Series 5007 Series	Thread Size M18x1.5 x 3/8-18

Product Questions & Answers (1)

Question by: Glen T on Jun 8, 2025, 7:09 AM

What size wrench do I need for installing this fitting?

Answer by: Customer Support on Jun 10, 2025, 6:34 AM

You'll need a 19mm wrench to tighten this fitting properly. That's the width across the flats of the Adaptall part.
