Din X Male Npt Complete

Description & Features

A straight steel adapter connecting a DIN tube end to a male NPT fitting, the Din X Male Npt Complete is suited for hydraulic circuits that require a transition between metric DIN and inch-based NPT threaded connections. Side one features an M22 x 1.5 male DIN tube fitting (Size S14), while side two carries a 1/2-14 NPTF male thread, making it compatible with standard NPT-ported components and assemblies.

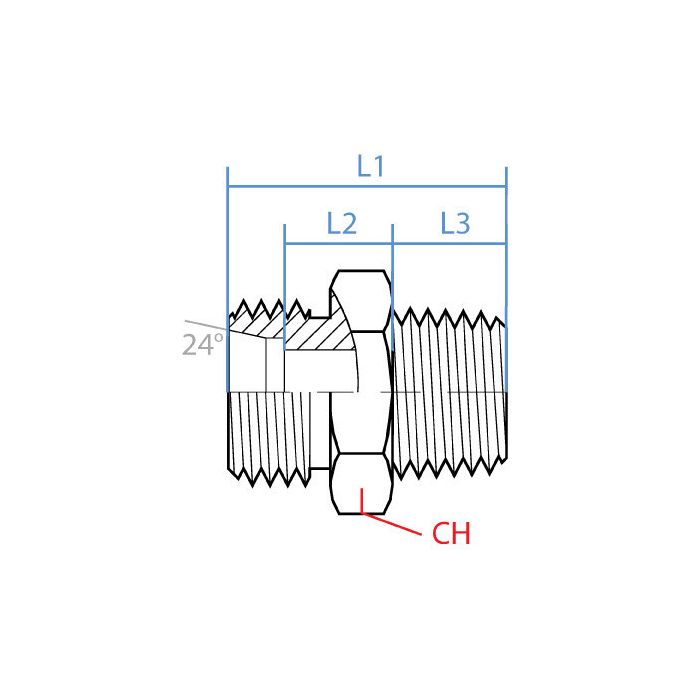

Manufactured by Adaptall in steel construction, this straight adapter measures 44mm in overall length (L1), with an L2 of 16mm and L3 of 20mm. The 24mm across-flats width accommodates standard wrenching during installation. Its compact straight profile suits tight routing conditions where a direct inline transition is preferred.

SKU: 5007S-14-08C

Supplier Part Number (MPN): 5007S-14-08C

Specifications

CH Width 24mm	L1 Length 44mm	L2 Length 16mm	L3 Length 20mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M22 X 1.5	Side 1 Gender M	Side 1 Size S14	Side 1 Type Din Tube	Side 2 Callout 1/2 - 14 NPTF	Side 2 Gender M	Side 2 Size 1/2"	Side 2 Type Npt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5007S-14-08C	Product Weight 0.20 lbs

Product Questions & Answers (1)

Question by: Jean R on Sep 7, 2025, 9:53 PM

got a valve block with 1/2-14 NPTF ports, will this adapter let me hook up an M22 x 1.5 DIN tube end?

Answer by: Customer Support on Sep 9, 2025, 6:16 AM

For tying metric DIN tube hardware into an NPT port, it bridges an M22 x 1.5 male DIN tube end (Size S14) on one side to a 1/2-14 NPTF male thread on the other, all in a straight inline steel adapter.
