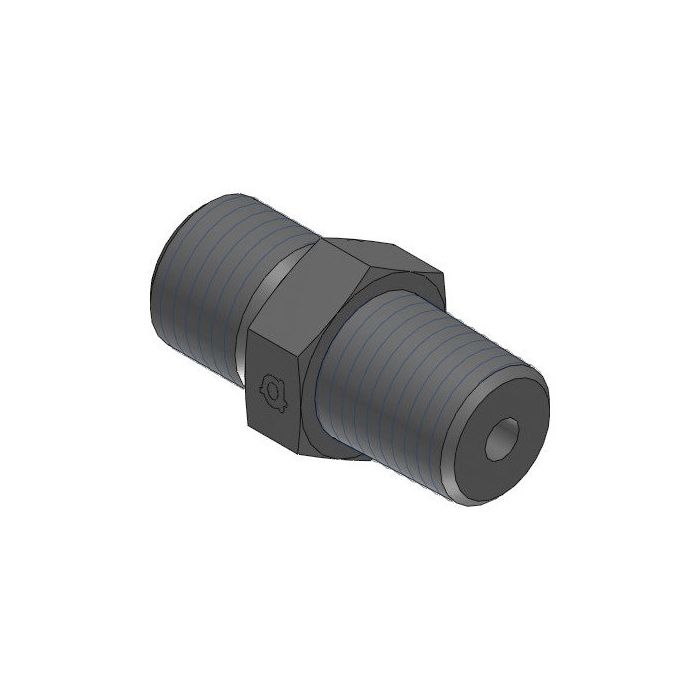

Din X Male Npt

Ask A Question

Description & Features

Designed for robust industrial applications, the Din X Male NPT adapter exemplifies precision engineering with its straight shape and durable steel construction. This adapter features a dual connection system, with Side 1 accommodating an M42 X 2.0 male DIN tube connection, and Side 2 offering a 1-1/4" male NPT thread. This configuration ensures a reliable and secure fit in hydraulic systems requiring these specific connections. The adapter's dimensions include a 46mm width, with lengths of 60mm, 20.5mm, and 26mm, providing the necessary metrics for compatibility and integration into existing setups.

Adaptall, the trusted brand behind this product, ensures quality and performance. The adapter's precise engineering supports efficient fluid transfer in demanding environments, making it an ideal choice for industries reliant on high-pressure hydraulic systems. With its strong steel material and straight design, this adapter is built to withstand the rigors of industrial use, ensuring longevity and consistent performance.

SKU: 5007S-30-20

Supplier Part Number (MPN): 5007S-30-20

Specifications

Brand
adapt-all
Connection Size 1
30 mm
Connection Size 2
1-1/4 in
Connection Type
Male Metric, MNPT
Connection Type 1
Male Metric DIN 24 deg Tube
Connection Type 2
Male NPT
Dimension Standards
ANSI B1.20.3, DIN 2353, ISO 8434-1
Dimensions
60 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Material
Steel
Material Construction
Carbon Steel
Series
5007 Series
Thread Size
M42x2 x 1-1/4-11-1/2

Product Questions & Answers (2)

Question by: Roy B on Feb 21, 2026, 9:58 PM
Got a system running M42 X 2.0 DIN tube fittings on one end and 1-1/4 inch NPT on the other, this the right adapter to bridge those two?
Answer by: Customer Support on Feb 23, 2026, 12:05 PM
That's exactly what this one's built for. Side 1 is an M42 X 2.0 male DIN tube connection and Side 2 is a 1-1/4 inch male NPT thread, so if your system has those two connection types on opposite ends, this adapter ties them together directly. Both sides are male, so make sure your mating components are female on each end before ordering.
Question by: Cheryl T on Feb 15, 2026, 2:29 PM
got a machine with an M42 x 2.0 DIN tube port on one side and 1-1/4 npt on the other. is this the right adapter or am i off a size
Answer by: Customer Support on Feb 17, 2026, 1:49 PM
Match the ends to the callouts: Side 1 is an M42 x 2.0 male DIN tube connection (S30), and Side 2 is a 1-1/4 inch male NPTF thread (1-1/4 - 11.5). If those are the two connection types and sizes you need, this straight steel adapter is the correct fit.
