Din X Male Npt

Ask A Question

Description & Features

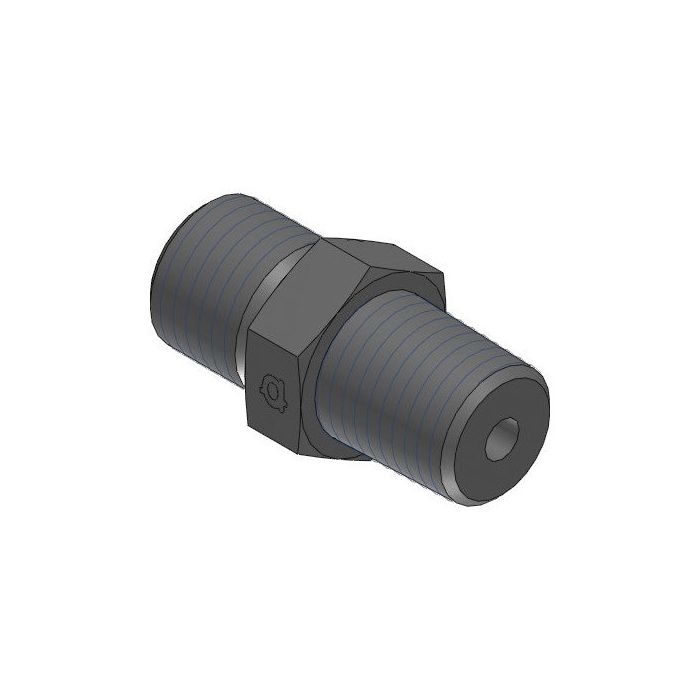

This steel Adaptall fitting is a DIN tube x male NPT adapter with a straight shape. The Din X Male Npt adapter features a M52 X 2.0 side 1 callout, with a side 1 gender of M and a side 1 size of S38. Side 2 has a 1-1/2 - 11.5 NPTF callout, with a side 2 gender of M and a side 2 size of 1-1/2".

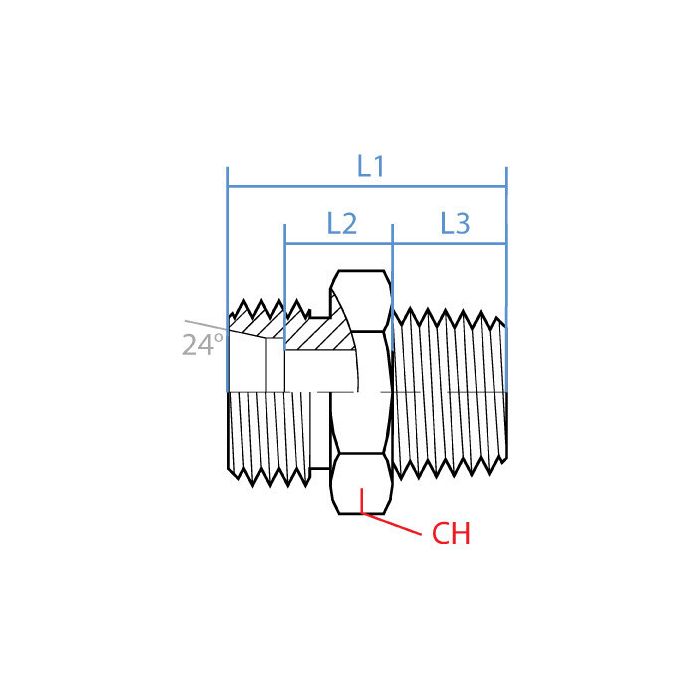

Adaptall Ch Width: 55mm. Adaptall L1 Length: 65mm. Adaptall L2 Length: 23mm. Adaptall L3 Length: 26mm.

SKU: 5007S-38-24

Supplier Part Number (MPN): 5007S-38-24

Specifications

Brand
adapt-all
Connection Size 1
38S
Connection Size 2
1-1/2 in
Connection Type
Male Metric, MNPT
Connection Type 1
Male Metric DIN 24 deg Tube
Connection Type 2
Male NPT
Dimension Standards
ANSI B1.20.3, DIN 2353, ISO 8434-1
Dimensions
65 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
55 mm
Material
Steel
Material Construction
Carbon Steel
Series
5007 Series
Thread Size
M52x2 x 1-1/2-11-1/2

Product Questions & Answers (2)

Question by: Warren H on Jan 9, 2026, 7:49 PM
So this is a DIN tube on one side, and NPT on the other? Just want to make sure I'm understanding it right.
Answer by: Customer Support on Jan 11, 2026, 4:16 PM
That's correct. This Adaptall fitting adapts between a DIN tube connection and a male NPT thread.
Question by: Rod O on Jul 1, 2025, 2:58 PM
got a din tube end that’s M52 x 2.0, will this adapter mate up to it and still give me 1-1/2 NPTF on the other side?
Answer by: Customer Support on Jul 3, 2025, 1:40 PM
On the DIN side, it is a male M52 x 2.0 connection with size S38, and the other end is a male 1-1/2 inch NPTF with a 1-1/2 - 11.5 callout, so it matches those two connection types and sizes.
