Din X F Bspp Solid

Ask A Question

Description & Features

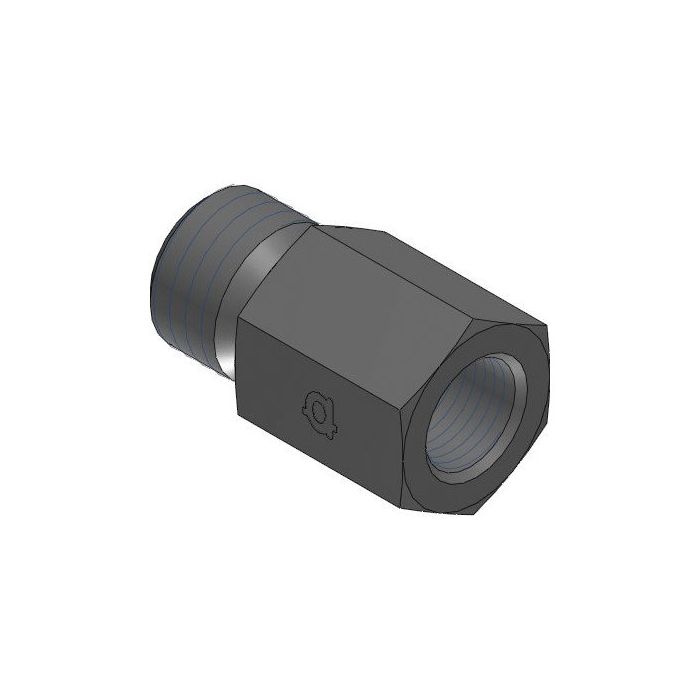

Designed for robust hydraulic applications, this steel adapter offers reliable connectivity with its straight shape and precise dimensions. Featuring an M14 x 1.5 male DIN tube connection on one side and a G 1/4 - 19 female BSPP thread on the other, it ensures a secure and efficient fit for various industrial setups. With an overall length of 31mm and a compact design, it is ideal for tight spaces while maintaining optimal performance. The adapter is built by Adaptall, known for delivering high-quality hydraulic components.

SKU: 5009L-08-04

Supplier Part Number (MPN): 5009L-08-04

Specifications

Brand
adapt-all
Connection Size 1
8 mm
Connection Size 2
1/4 in
Connection Type
Female BSP, Male Metric
Connection Type 1
Male Metric DIN 24 deg Tube
Connection Type 2
Female BSPP
Dimension Standards
BS 5200, DIN 2353
Dimensions
31 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
19 mm
Material
Steel
Material Construction
Carbon Steel
Series
5009 Series
Thread Size
M14x1.5 x 1/4-19

Product Questions & Answers (2)

Question by: Brent C on Dec 26, 2025, 2:46 PM
Will this here adapter fit my setup? I need a M14 x 1.5 male DIN tube on one side and a G 1/4 - 19 female BSPP on the other.
Answer by: Customer Support on Dec 28, 2025, 6:50 AM
This adapter is made to connect exactly those two fitting types. The M14 x 1.5 male DIN tube fits one side, and the G 1/4 - 19 female BSPP fits the other.
Question by: Neil T on Jun 23, 2025, 8:21 AM
Trying to match up fittings here, is this the one that goes from M14 x 1.5 male DIN tube over to a G 1/4-19 female BSPP port?
Answer by: Customer Support on Jun 24, 2025, 9:18 PM
For connecting those two thread standards, it’s a straight steel adapter with an M14 x 1.5 male DIN tube end on one side and a G 1/4 - 19 female BSPP thread on the other.
