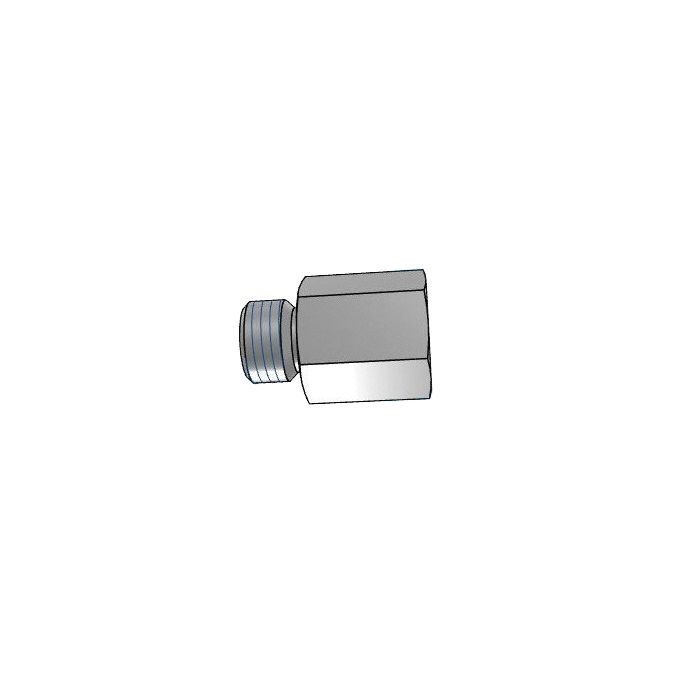

main product photo

Din X F Bspp Complete

Ask A Question

Description & Features

Designed for connecting DIN tube fittings to BSPP threaded ports, the Din X F Bspp Complete adapter from Adaptall bridges two common hydraulic connection standards in a single straight fitting. Side one features an M14 x 1.5 male DIN tube end (L08 sizing), while side two presents a G 1/4-19 female BSPP port, making this a practical solution where DIN and BSPP systems meet within a hydraulic circuit.

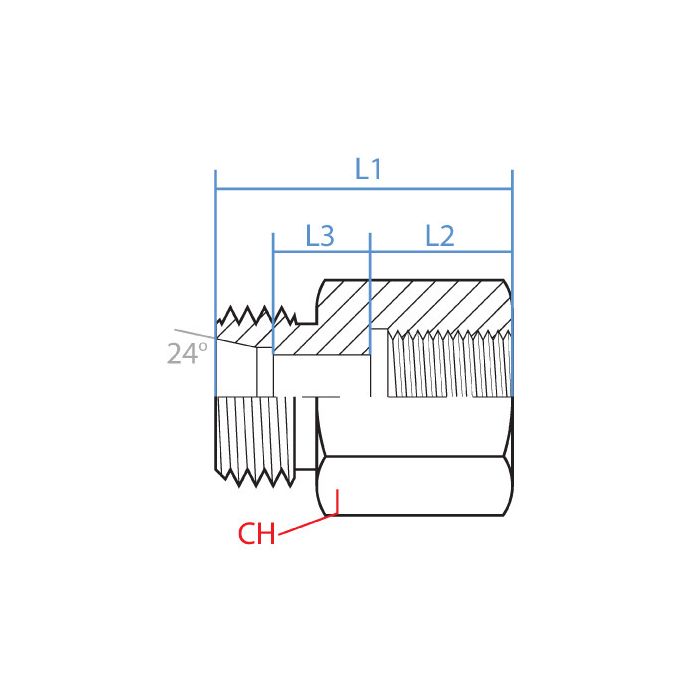

Constructed from steel and built in a straight configuration, this fitting measures 31mm in overall length (L1), with an L2 of 17mm and an L3 of 7mm. The 19mm wrench flat width supports secure installation with standard tooling. Its compact straight geometry suits installations where inline connection between differing thread standards is required.

SKU: 5009L-08-04C

Supplier Part Number (MPN): 5009L-08-04C

Specifications

Brand
adapt-all
Connection Size 1
8 mm
Connection Size 2
1/4 in
Connection Type
Female BSP, Male Metric
Connection Type 1
Male Metric DIN 24 deg Tube
Connection Type 2
Female BSPP
Dimension Standards
BS 5200, DIN 2353, ISO 1179, ISO 8434-1, ISO 8434-6
Dimensions
31 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
19 mm
Material
Steel
Material Construction
Carbon Steel
Series
5009 Series
Thread Size
M14x1.5 x 1/4-19

Product Questions & Answers (3)

Question by: Rex R on Jan 24, 2026, 6:15 AM
Will this fitting work to connect a DIN fitting to a BSPP port?
Answer by: Customer Support on Jan 25, 2026, 7:48 AM
Yes, this Adaptall fitting is specifically designed to connect a DIN tube fitting to a BSPP threaded port. The side one features an M14 x 1.5 male DIN tube end, while side two has a G 1/4-19 female BSPP port.
Question by: Clint T on Oct 17, 2025, 10:43 AM
got a piece of equipment with a G 1/4 BSPP port on it and need to tie into some DIN tube lines -- does this fitting handle that crossover in one shot?
Answer by: Customer Support on Oct 19, 2025, 6:16 AM
That's what this adapter is built for. One end is a G 1/4-19 female BSPP port and the other is an M14 x 1.5 male DIN tube end sized at L08, so you can bridge those two standards without stacking multiple fittings together. Steel construction, straight configuration, and a 19mm wrench flat means you can torque it down with standard tooling and move on.
Question by: Rusty M on Dec 6, 2025, 2:11 PM
trying to hook a din tube end into a bsp port, is this the right adapter for that?
Answer by: Customer Support on Dec 7, 2025, 4:25 PM
For tying two standards together, this fitting goes from an M14 x 1.5 male DIN tube end (L08) on one side to a G 1/4-19 female BSPP port on the other, all in a straight adapter.
