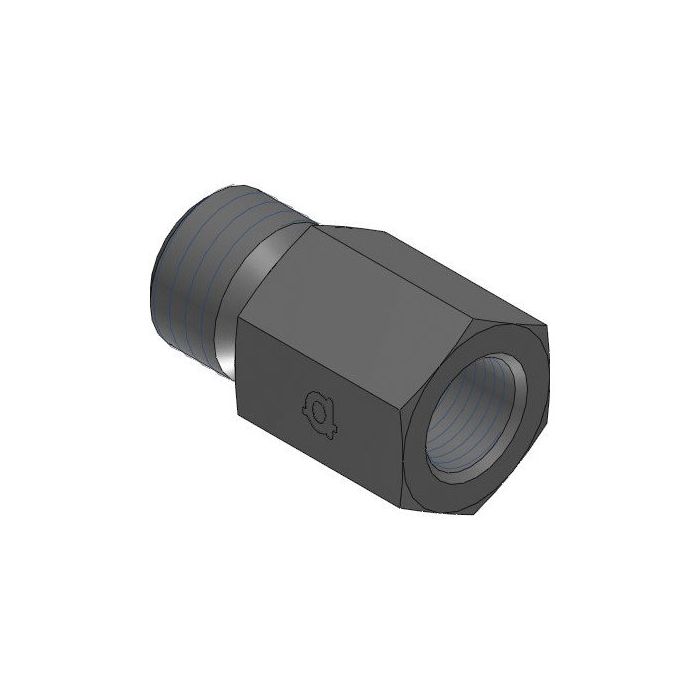

main product photo

Din X F Bspp Solid

Ask A Question

Description & Features

Manufactured from steel in a straight configuration, this Adaptall DIN x F BSPP Solid adapter provides a reliable transition between a DIN tube end and a female BSPP port. Side one features an M16 x 1.5 male DIN tube connection (L10), while side two accepts a G 1/4-19 female BSPP fitting at 1/4 inch. The straight body measures 32mm in overall length, with a 19mm wrench flat for secure installation.

The Din X F Bspp Solid is well suited for hydraulic circuit assemblies where a DIN tube line must interface with a BSPP-ported component. Its solid, one-piece steel construction makes it a dependable choice for fixed-connection points in high-pressure hydraulic systems.

SKU: 5009L-10-04

Supplier Part Number (MPN): 5009L-10-04

Specifications

Brand
adapt-all
Connection Size 2
1/4 in
Connection Type
Female BSP, Male Metric
Connection Type 1
Male Metric DIN 24 deg Tube
Connection Type 2
Female BSPP
Dimension Standards
BS 5200, DIN 2353
Dimensions
32 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
19 mm
Material
Steel
Material Construction
Carbon Steel
Series
5009 Series
Thread Size
M16x1.5 x 1/4-19

Product Questions & Answers (1)

Question by: Kirk C on Feb 21, 2026, 6:27 AM
Will this fitting hold up for connecting a hydraulic line to a valve on my log splitter? See pressures around 2500-3000 psi.
Answer by: Customer Support on Feb 22, 2026, 6:45 PM
Made from steel, this adapter is designed for hydraulic circuit assemblies where a DIN tube line needs to connect to a BSPP-ported component, so it should be suitable for that pressure range.
