main product photo

Din X F Bspp Solid

Ask A Question

Description & Features

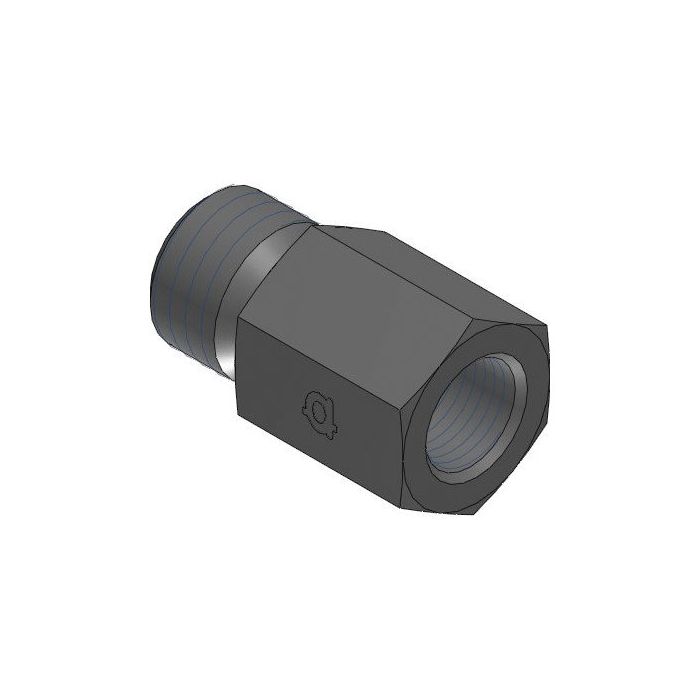

Enhance your hydraulic systems with the robust steel construction of this straight adapter, featuring a M52 x 2.0 male DIN tube connection on one side and a G 1-1/2 - 11 female BSPP connection on the other. Designed with precision, the adapter offers a 60mm width and measures 53.5mm in length, ensuring a secure and reliable fit for various industrial applications.

The Din X F Bspp Solid adapter, crafted by Adaptall, is engineered to withstand demanding environments. Its durable steel material ensures longevity and resistance to wear. With dimensions including an L1 length of 53.5mm, L2 length of 28.5mm, and L3 length of 14mm, this adapter is ideal for connecting different hydraulic components efficiently.

SKU: 5009L-42-24

Supplier Part Number (MPN): 5009L-42-24

Specifications

Brand
adapt-all
Connection Size 1
L42
Connection Size 2
1-1/2 in
Connection Type
Female BSP, Male Metric
Connection Type 1
Male Metric DIN 24 deg Tube
Connection Type 2
Female BSPP
Dimension Standards
BS 5200, DIN 2353
Dimensions
53.5 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Material
Steel
Material Construction
Carbon Steel
Series
5009 Series
Thread Size
M52x2 x 1-1/2-11

Product Questions & Answers (2)

Question by: Lee S on Jul 16, 2025, 8:13 AM
trying to hook a M52 x 2.0 DIN tube line into a G 1-1/2 - 11 BSPP port, is this the right adapter?
Answer by: Customer Support on Jul 17, 2025, 3:02 PM
For that kind of thread mix, it matches up as a straight steel adapter with an M52 x 2.0 male DIN tube connection on one side and a G 1-1/2 - 11 female BSPP connection on the other.
Question by: Daryl R on May 31, 2025, 2:33 PM
what's the thread size on the male end of this adapter, and does it match up with standard DIN tube fittings?
Answer by: Customer Support on Jun 1, 2025, 7:34 PM
The male side runs M52 x 2.0, which is a metric DIN tube connection. That's a large-diameter fitting, so as long as your tube end or mating component is spec'd for that same M52 x 2.0 DIN thread, you're good to go. The female end on the opposite side is G 1-1/2 - 11 BSPP, so this adapter is purpose-built for bridging those two thread standards in a straight-line configuration.
