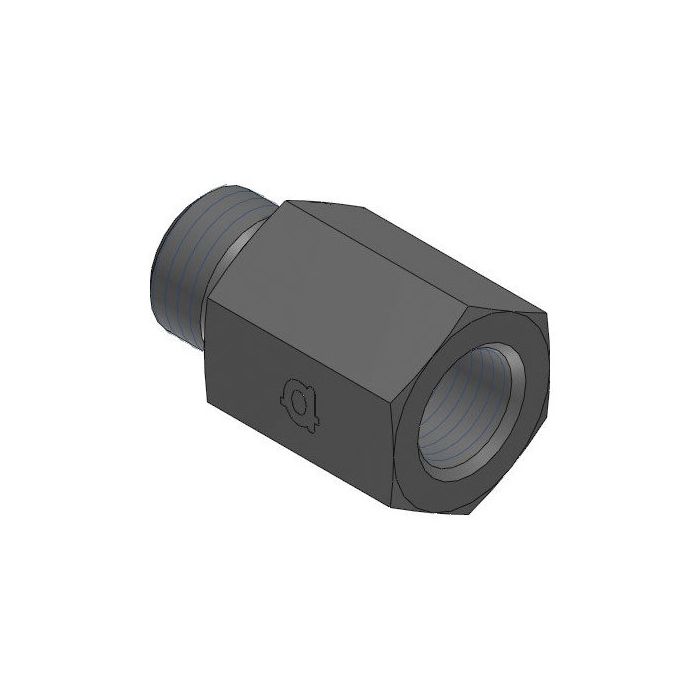

main product photo

Din X F Bspp Solid

Ask A Question

Description & Features

This Adaptall straight fitting features a Din tube connection on one side and a female Bspp connection on the other. The Din connection is size S06, M14 x 1.5. The Bspp connection is size 1/4", G 1/4 - 19.

The Din X F Bspp Solid adapter is constructed from steel. The Adaptall fitting has a wrench flat size of 19mm. Its L1 length is 33mm, L2 length is 17mm, and L3 length is 9mm.

SKU: 5009S-06-04

Supplier Part Number (MPN): 5009S-06-04

Specifications

Brand
adapt-all
Connection Size 1
6 mm
Connection Size 2
1/4 in
Connection Type
Female BSP, Male Metric
Connection Type 1
Male Metric DIN 24 deg Tube
Connection Type 2
Female BSPP
Dimension Standards
BS 5200, DIN 2353
Dimensions
33 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
19 mm
Material
Steel
Material Construction
Carbon Steel
Series
5009 Series
Thread Size
M14x1.5 x 1/4-19

Product Questions & Answers (3)

Question by: Cheryl M on Oct 15, 2025, 7:44 PM
Got a piece of equipment running DIN S06 fittings and need to tie into a BSPP 1/4" port on a valve block. This straight adapter gonna bridge that gap without needing extra bits in between?
Answer by: Customer Support on Oct 17, 2025, 6:05 AM
That's exactly what this fitting handles. One end is a DIN tube connection, size S06 with an M14 x 1.5 thread, and the other is a female BSPP port at G 1/4-19. Run your DIN line straight in on one side and thread your BSPP male fitting into the other. No additional adapters needed for that conversion. It's a solid steel construction, straight configuration, so you're not adding any bends or offsets to the assembly.
Question by: Lynn Y on Jan 5, 2026, 3:31 PM
Will this fitting hold up alright with regular hydraulic use, or is it more for light duty?
Answer by: Customer Support on Jan 6, 2026, 4:38 PM
Constructed from steel, the Adaptall fitting is designed to handle typical hydraulic pressures within standard operating conditions.
Question by: Roy M on Oct 3, 2025, 9:58 AM
trying to match up a fitting i pulled off, is this one the straight din S06 M14 x 1.5 to a 1/4 female bspp (G 1/4-19)?
Answer by: Customer Support on Oct 5, 2025, 9:11 AM
For fit confirmation, the connections on this adapter are DIN tube size S06 with an M14 x 1.5 male end on one side, and a 1/4 inch female BSPP end on the other with G 1/4-19 threads.
