Din X Male Bspt

Ask A Question

Description & Features

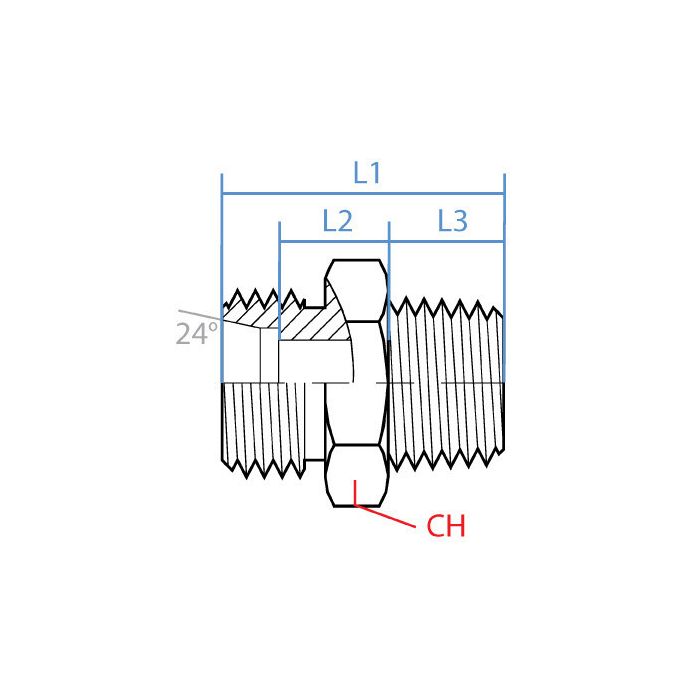

Manufactured from steel in a straight configuration, this Adaptall Din X Male Bspt adapter connects a DIN tube end to a male BSPT thread. Side one features an M12 x 1.5 DIN tube connection, while side two provides a 1/8" male BSPT thread with an R 1/8-28 callout, making it a practical solution for joining metric DIN tube lines to BSPT-threaded ports in hydraulic circuits.

Adaptall's interchangeable adapter system allows this fitting to be assembled with compatible swivel bodies and other components, offering flexibility across a range of hydraulic configurations without requiring custom fabrication.

SKU: 5011L-06-02

Supplier Part Number (MPN): 5011L-06-02

Specifications

Connection Size 1
6 mm
Connection Size 2
1/8 in
Connection Type
Male BSP, Male Metric
Connection Type 1
Male Metric DIN 24 deg Tube
Connection Type 2
Male BSPT
Dimension Standards
DIN 2353, DIN EN 10226-1
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
12 mm
Material
Steel
Material Construction
Carbon Steel
Series
5011 Series
Thread Size
M12x1.5 x 1/8-28

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Janice R on Jan 21, 2026, 4:06 PM
got a DIN tube end that’s M12 x 1.5, will this adapter get me over to a 1/8 BSPT port?
Answer by: Customer Support on Jan 23, 2026, 12:41 PM
For that exact matchup, it fits the bill. Side one is an M12 x 1.5 DIN tube connection (L06), and side two is a 1/8 inch male BSPT thread with the R 1/8-28 callout, so it bridges a DIN tube end over to a BSPT threaded port.
Question by: Cody H on Dec 6, 2025, 2:40 PM
Got a metric DIN tube line that needs to tie into a BSPT port on a hydraulic valve body, this the right piece for that?
Answer by: Customer Support on Dec 7, 2025, 7:13 PM
That's what this adapter is built for. One end is an M12 x 1.5 DIN tube connection, and the other is a 1/8" male BSPT thread with an R 1/8-28 callout. So if you're bridging a metric DIN tube line over to a BSPT-threaded port, this fitting makes that connection straight and clean without any custom work.
