Din X Male Bspt

Ask A Question

Description & Features

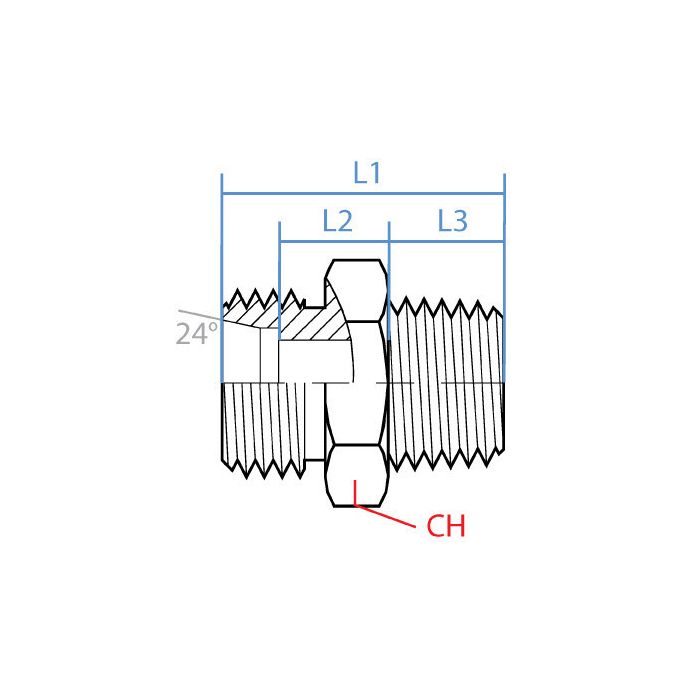

This straight steel Adaptall fitting connects DIN tube to a BSPT connection. It adapts a M12 X 1.5 DIN tube to a 1/4" BSPT male end.

The Din X Male Bspt fitting has a 14mm wrench flat.

SKU: 5011L-06-04

Supplier Part Number (MPN): 5011L-06-04

Specifications

Connection Size 1
6 mm
Connection Size 2
1/4 in
Connection Type
Male BSP, Male Metric
Connection Type 1
Male Metric DIN 24 deg Tube
Connection Type 2
Male BSPT
Dimension Standards
DIN 2353, DIN EN 10226-1
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
14 mm
Material
Steel
Material Construction
Carbon Steel
Series
5011 Series
Thread Size
M12x1.5 x 1/4-19

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Carl F on Sep 10, 2025, 8:02 PM
i’ve got a metric DIN tube end that’s M12 x 1.5, will this fitting get me over to a 1/4 BSPT male?
Answer by: Customer Support on Sep 12, 2025, 6:23 PM
It’s meant for exactly that kind of changeover. One side is a M12 x 1.5 DIN tube connection, and the other side is a 1/4 inch BSPT male thread called out as R 1/4 - 19.
Question by: Diane H on Apr 26, 2025, 11:51 AM
What size DIN tube does this fitting connect to, and what's on the other end of it?
Answer by: Customer Support on Apr 28, 2025, 11:45 AM
One side takes an M12 x 1.5 DIN tube connection, male, and the other end is a 1/4 inch BSPT male thread. So you're adapting a metric DIN tube side over to a British standard tapered pipe thread on the outlet. Both ends are male, straight through, no bends or offsets.
