Din X Male Bspt Complete

Description & Features

Designed for straight-through hydraulic connections, this steel Adaptall fitting bridges a DIN tube end to a male BSPT thread in a single compact body. Side one features an M16 x 1.5 DIN tube connection (L10 sizing), while side two terminates in a 1/4" male BSPT thread to the R 1/4-19 standard, making it well suited for hydraulic circuits that mix DIN and BSPT-threaded components.

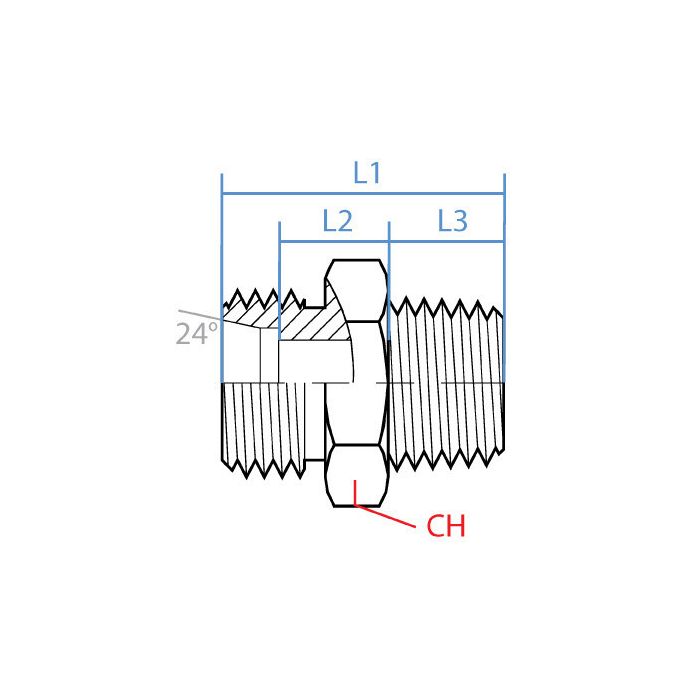

The Din X Male Bspt Complete measures 28mm in overall length (L1), with an L2 of 9mm and L3 of 12mm, and is turned to a 17mm across-flats wrench width for straightforward installation with standard tooling. Steel construction provides durability in demanding hydraulic service environments. As part of the Adaptall modular fitting system, this component offers reliable interchangeability within compatible Adaptall assemblies.

SKU: 5011L-10-04C

Supplier Part Number (MPN): 5011L-10-04C

Specifications

CH Width 17mm	L1 Length 28mm	L2 Length 9mm	L3 Length 12mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M16 X 1.5	Side 1 Gender M	Side 1 Size L10	Side 1 Type Din Tube	Side 2 Callout R 1/4 - 19	Side 2 Gender M	Side 2 Size 1/4"	Side 2 Type Bspt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5011L-10-04C	Product Weight 0.06 lbs

Product Questions & Answers (2)

Question by: Earl C on Nov 11, 2025, 8:08 PM

trying to hook a DIN tube end up to a BSPT port, is this the piece that goes from M16 x 1.5 (L10) over to 1/4" R 1/4-19?

Answer by: Customer Support on Nov 13, 2025, 8:18 AM

Built for mixing standards in one straight-through connection, it mates an M16 x 1.5 DIN tube end (L10) on one side to a 1/4 inch male BSPT thread on the other, called out as R 1/4-19.

Question by: Rex B on Sep 12, 2025, 7:18 PM

fitting's got an M16 x 1.5 DIN side and I need to tie into a 1/4 inch BSPT port, this the right piece for that?

Answer by: Customer Support on Sep 14, 2025, 6:44 AM

That's what this one's built for. One end is an M16 x 1.5 DIN tube connection at L10 sizing, and the other terminates in a 1/4" male BSPT thread to the R 1/4-19 standard. Straight-through body, no angle to it, so flow goes right from one side to the other without any redirection. Steel construction throughout, so it holds up fine in working hydraulic service.
