Din X Male Bspt Complete

Description & Features

This straight steel fitting is a Din X Male Bspt Complete adapter. Side 1 is a M18 X 1.5 Din Tube connection, size L12. Side 2 is a 3/8" Bspt male connection with a R 3/8 - 19 callout.

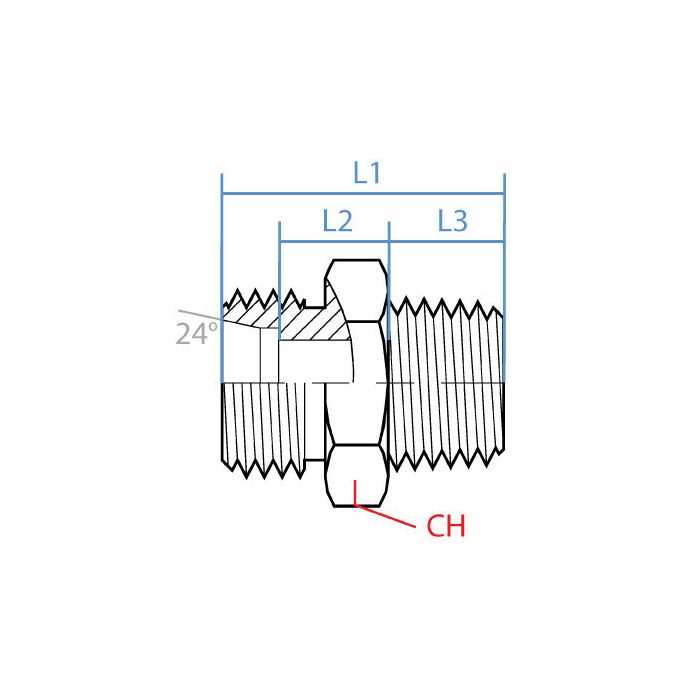

Adaptall Ch Width: 19mm, Adaptall L1 Length: 29mm, Adaptall L2 Length: 10mm, Adaptall L3 Length: 12mm.

SKU: 5011L-12-06C

Supplier Part Number (MPN): 5011L-12-06C

Specifications

Connection Size 1 L12	Connection Size 2 3/8 in	Connection Type Male BSP, Male Metric	Connection Type 1 Male Metric DIN 24 deg Tube	Connection Type 2 Male BSPT	Dimension Standards DIN 2353, DIN EN 10226-1, ISO 7-1, ISO 8434-1	Finish Zinc-Plated	Fitting Type Adapter	Hex Size 19 mm	Material Steel	Material Construction Carbon Steel	Series 5011 Series	Thread Size M18x1.5 x 3/8-19

Product Questions & Answers (3)

Question by: Vince S on May 29, 2025, 4:23 PM

trying to swap a hose over, is this the adapter that goes from M18 x 1.5 DIN tube (L12) to a 3/8 BSPT male?

Answer by: Customer Support on May 31, 2025, 8:28 AM

You’re looking at a straight steel adapter with Side 1 as an M18 x 1.5 DIN tube connection in size L12, and Side 2 as a 3/8 inch BSPT male thread with an R 3/8 - 19 callout.

Question by: Freddie R on May 11, 2025, 6:34 PM

Just wanna make sure, will this fitting work to connect a M18 X 1.5 DIN tube to a 3/8" Bspt male connection?

Answer by: Customer Support on May 13, 2025, 6:44 AM

That's what it's for. This straight steel fitting adapts between those two connection types.

Question by: Hank B on Mar 28, 2026, 8:19 PM

Got a line running M18 x 1.5 DIN tube on one end and need to tie into a 3/8 BSPT male port, this the right piece for that?

Answer by: Customer Support on Mar 30, 2026, 7:20 AM

That's what this fitting handles. One end is an M18 x 1.5 DIN tube connection at size L12, and the other is a 3/8 inch BSPT male thread with an R 3/8-19 callout. Straight steel body, so no angle changes in the line. If both those connection types match what you're working with, this will do the job.
