Din X Male Bspt Complete

Description & Features

This straight Adaptall fitting is a Din X Male Bspt Complete, constructed of steel for durability. It features a Din Tube connection on Side 1 with a M22 X 1.5 callout and L15 size, and a Bspt connection on Side 2 with a R 1/2 - 14 callout and 1/2" size.

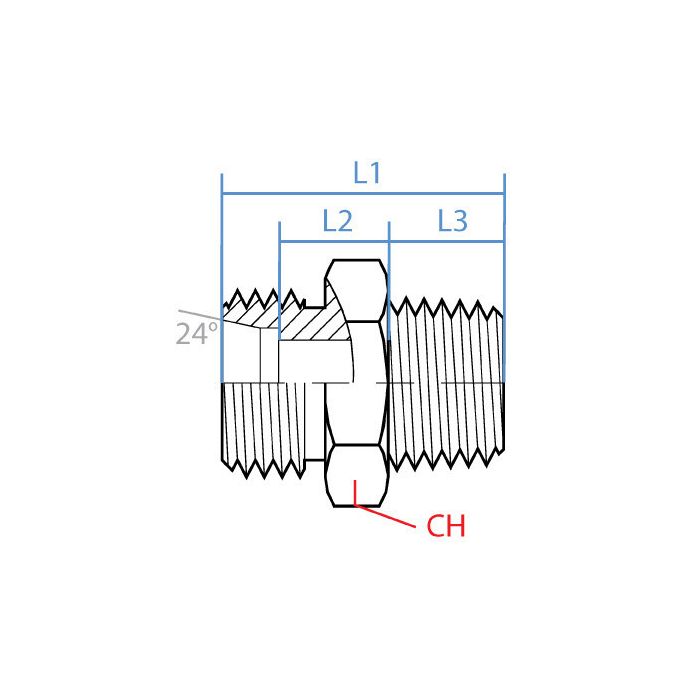

The Adaptall Ch Width is 24mm, Adaptall L1 Length is 32mm, Adaptall L2 Length is 11mm, and Adaptall L3 Length is 14mm.

SKU: 5011L-15-08C

Supplier Part Number (MPN): 5011L-15-08C

Specifications

CH Width 24mm	L1 Length 32mm	L2 Length 11mm	L3 Length 14mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M22 X 1.5	Side 1 Gender M	Side 1 Size L15	Side 1 Type Din Tube	Side 2 Callout R 1/2 - 14	Side 2 Gender M	Side 2 Size 1/2"	Side 2 Type Bspt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5011L-15-08C	Product Weight 0.14 lbs

Product Questions & Answers (2)

Question by: Peggy G on Mar 28, 2026, 9:35 AM

Got a system running BSPT half-inch fittings and need to tie into a DIN tube connection on the other end. this fitting do that job straight out of the box?

Answer by: Customer Support on Mar 30, 2026, 7:41 AM

That's what this one's built for. Side 1 is a DIN Tube connection with an M22 x 1.5 thread and an L15 size rating. Side 2 is a male BSPT at R 1/2-14, which is your standard half-inch BSPT callout. Steel construction, straight profile, no adapters or extra pieces needed to bridge those two connection types.

Question by: Vince C on Jun 28, 2025, 9:34 PM

got a tube nut marked M22 x 1.5 and it’s the L15 din tube style. is this the right adapter to go over to a 1/2 bsp?

Answer by: Customer Support on Jun 30, 2025, 6:29 PM

On the DIN tube side, it matches an M22 x 1.5 male connection in size L15. The other end is a male BSPT with an R 1/2 - 14 callout, which is the 1/2 inch BSPT side.
