Din X Male Bspt Complete

Description & Features

Designed for reliability and precision, this hydraulic fitting features a robust steel construction, ensuring durability in demanding industrial environments. The straight design of the fitting allows for seamless integration, while the M8 x 1.0 DIN Tube connection on Side 1 and the R 1/8 - 28 BSPT male connection on Side 2 provide versatile application opportunities across various hydraulic systems. Its compact dimensions, with an 11mm width and lengths of 20mm and 8mm, make it ideal for installations where space is limited.

With Adaptall's reputation for excellence, this Din X Male Bspt Complete fitting meets high standards for quality and compatibility. Its LL04 size on Side 1 and 1/8" size on Side 2 ensure it fits precisely within specified hydraulic systems, minimizing potential leaks and optimizing performance. This fitting is a reliable choice for professionals seeking efficiency and dependability in their hydraulic connections.

SKU: 5011LL-04-02C

Supplier Part Number (MPN): 5011LL-04-02C

Specifications

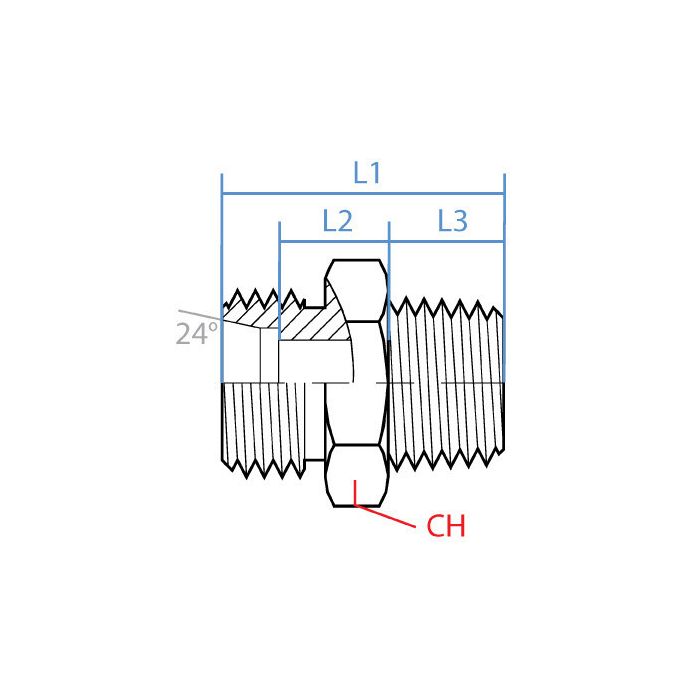

CH Width 11mm	L1 Length 20mm	L2 Length 8mm	L3 Length 8mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M8 X 1.0	Side 1 Gender M	Side 1 Size LL04	Side 1 Type Din Tube	Side 2 Callout R 1/8 - 28	Side 2 Gender M	Side 2 Size 1/8"	Side 2 Type Bspt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5011LL-04-02C	Product Weight 0.02 lbs

Product Questions & Answers (2)

Question by: Lyle C on Mar 14, 2026, 2:26 PM

Reckon this fitting can handle the kinda pressures you find in heavy equipment hydraulics?

Answer by: Customer Support on Mar 16, 2026, 6:37 AM

Designed for demanding industrial environments, this fitting uses robust steel construction to ensure reliability and durability.

Question by: Billy R on Feb 7, 2026, 6:11 AM

Got a DIN tube line running M8 x 1.0 that I need to tie into a BSPT port, this fitting do that straight across?

Answer by: Customer Support on Feb 9, 2026, 6:49 AM

Yeah, that's exactly what this one's built for. Side 1 is an M8 x 1.0 DIN tube connection, male, and Side 2 comes out as a 1/8" R 1/8-28 BSPT male. It's a straight fitting, so there's no angle to account for. Steel construction, 11mm wrench width, and it keeps a compact footprint with a 20mm overall length. Fits tight spaces without much fuss.
