Din X Male Bspt Complete

Description & Features

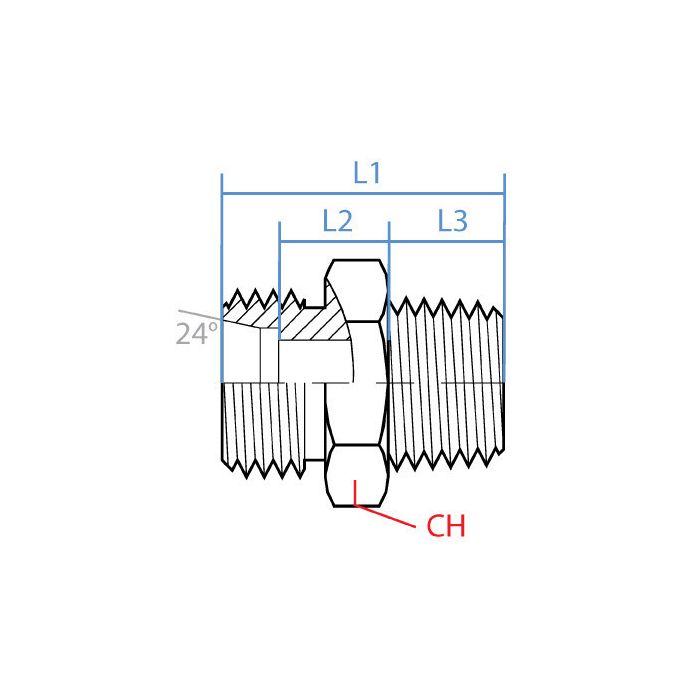

The Din X Male Bspt Complete adapter features a robust steel construction, ensuring durability and reliability in demanding industrial environments. With a straight shape and precision-engineered dimensions, it is designed for seamless integration in hydraulic systems. This adapter connects an M10 x 1.0 Din tube on Side 1 with a 1/8" BSPT thread on Side 2, both of which are male connections. The compact design, with specific dimensions of 11mm width, 20mm length (L1), 6mm length (L2), and 8mm length (L3), makes it ideal for tight spaces where efficiency and precision are crucial.

Adaptall, a trusted brand known for quality, provides this adapter, making it suitable for various applications where secure and leak-free connections are necessary. Its compatibility with standard hydraulic components ensures it meets the needs of professionals seeking reliable solutions.

SKU: 5011LL-06-02C

Supplier Part Number (MPN): 5011LL-06-02C

Specifications

CH Width 11mm	L1 Length 20mm	L2 Length 6mm	L3 Length 8mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M10 X 1.0	Side 1 Gender M	Side 1 Size LL06	Side 1 Type Din Tube	Side 2 Callout R 1/8 - 28	Side 2 Gender M	Side 2 Size 1/8"	Side 2 Type Bspt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5011LL-06-02C	Product Weight 0.04 lbs

Product Questions & Answers (3)

Question by: Rhonda T on Dec 17, 2025, 10:32 AM

got a DIN tube fitting on an old hydraulic line that needs to tie into a 1/8 BSPT port, this the right piece for that?

Answer by: Customer Support on Dec 19, 2025, 8:06 AM

That's what this adapter is built for. One end is an M10 x 1.0 DIN tube male connection, and the other is a 1/8 inch BSPT male thread, so it bridges those two standards in a single straight fitting. Both sides are male, so make sure the ports or fittings you're connecting to are female on each end. Steel construction, compact dimensions, 20mm on the main length, so it should tuck in without much trouble even where space is tight.

Question by: Tony C on Jul 18, 2025, 7:29 AM

trying to hook an m10 x 1.0 DIN tube up to a 1/8 BSPT port, is this the right adapter?

Answer by: Customer Support on Jul 20, 2025, 8:36 AM

For that mix of connections, it matches up as a straight steel adapter with an M10 x 1.0 DIN tube male end on Side 1 and an R 1/8 - 28 BSPT male thread on Side 2.

Question by: Wayne R on Dec 6, 2025, 2:18 PM

Will this here adapter hold up okay in a hydraulic system that sees some pretty high pressures?

Answer by: Customer Support on Dec 7, 2025, 6:44 PM

Because this adapter is constructed from steel, it is durable enough to handle demanding industrial environments. It's built to provide a reliable connection in hydraulic systems.
