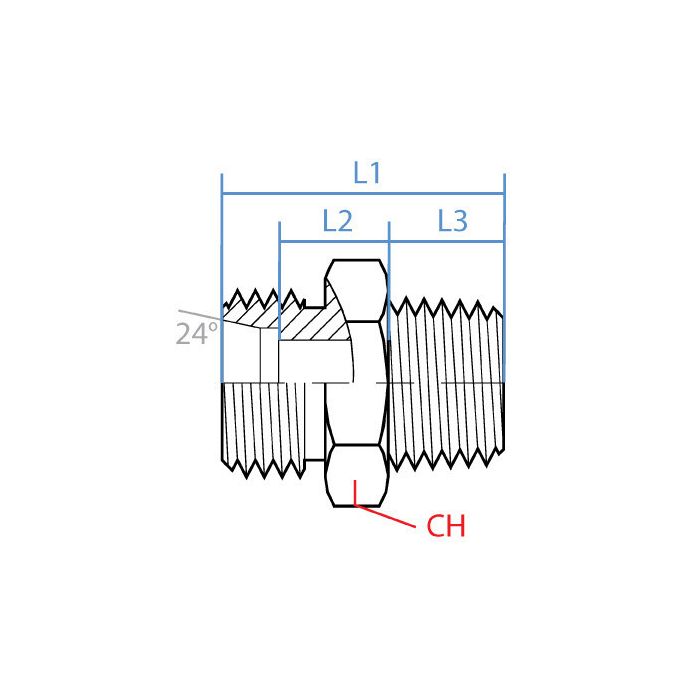

main product photo

Din X Male Bspt Complete

Ask A Question

Description & Features

Constructed from steel in a straight configuration, this Adaptall Din X Male Bspt Complete adapter connects a DIN tube end (M24 x 1.5 thread, Size S16) on one side to a male BSPT port (R 1/2-14, 1/2") on the other. The straight body keeps the connection profile compact and inline, making it well suited for hydraulic systems where a direct thread-to-tube transition is required without angular offset.

As part of the Adaptall system, this fitting is designed for reliable, interchangeable use across a wide range of hydraulic circuit configurations. Steel construction provides durability under the mechanical and pressure demands typical of industrial hydraulic applications.

SKU: 5011S-16-08C

Supplier Part Number (MPN): 5011S-16-08C

Specifications

Connection Size 1
S16
Connection Size 2
1/2 in
Connection Type
Male BSP, Male Metric
Connection Type 1
Male Metric DIN 24 deg Tube
Connection Type 2
Male BSPT
Dimension Standards
DIN 2353, DIN EN 10226-1, ISO 7-1, ISO 8434-1
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
27 mm
Material
Steel
Material Construction
Carbon Steel
Series
5011 Series
Thread Size
M24x1.5 x 1/2-14

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Frank S on Sep 5, 2025, 6:46 PM
got a DIN tube end that’s M24 x 1.5 size S16. is this the right adapter to land it into a 1/2 BSPT port?
Answer by: Customer Support on Sep 7, 2025, 8:18 AM
For a straight DIN tube to port transition, it matches those exact ends. One side is a DIN tube end with M24 x 1.5 threads in size S16, and the other side is a male BSPT thread R 1/2-14, which is the common 1/2 inch BSPT port size.
