Danfoss / Eaton SPLIT Flange ADAPTOR

Description & Features

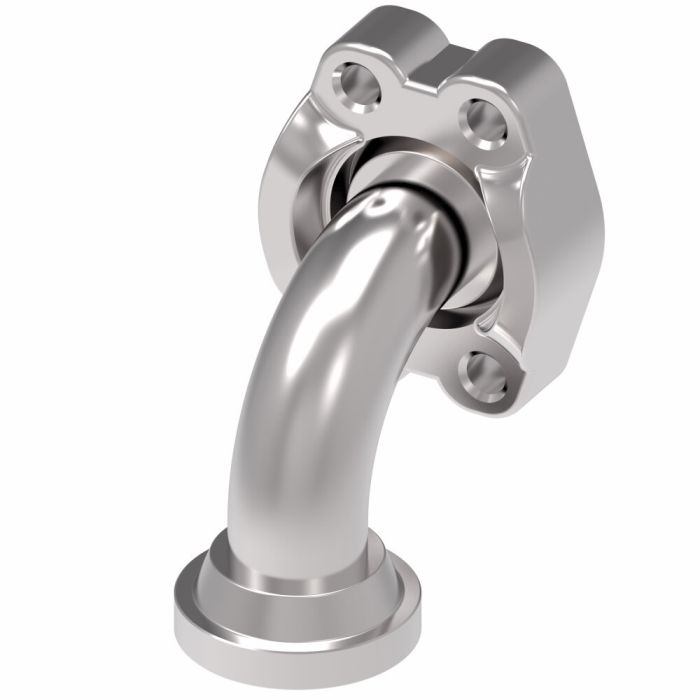

This carbon steel Danfoss / Eaton SPLIT Flange ADAPTOR is a 90° elbow adapter with flanged female to flanged female ends.

Featuring Dura-Kote plating, this adapter offers superior corrosion resistance and design flexibility. It is suitable for use in marine, military, chemical processing, pulp and paper, and food and beverage applications, as well as off-shore drilling. This adapter meets SAE J514 standards.

SKU: 504089-20S

Supplier Part Number (MPN): 504089-20S

Specifications

Connection Size 1 1-1/4 in	Connection Size 2 1-1/4 in	Connection Type Flanged	Connection Type 1 Female SAE Code 61 Flange	Connection Type 2 Female SAE Code 61 Flange	Dimension Standards SAE J514/J518	Finish Dura-Kote™	Fitting Type 90 deg Elbow	For Use With SAE 100R16 2-Wire Braid Hoses	Material Steel	Material Construction Carbon Steel	nmfc 50	Operating Temperature -65 to 400 deg F	Segment Code C	Series 504089 Series

Product Questions & Answers (1)

Question by: Dwight P on Mar 11, 2026, 12:59 PM

Will this fitting hold up in a marine environment without corroding too bad?

Answer by: Customer Support on Mar 12, 2026, 9:42 PM

Dura-Kote plating on this adapter is designed for superior corrosion resistance, which makes it suitable for marine applications.
