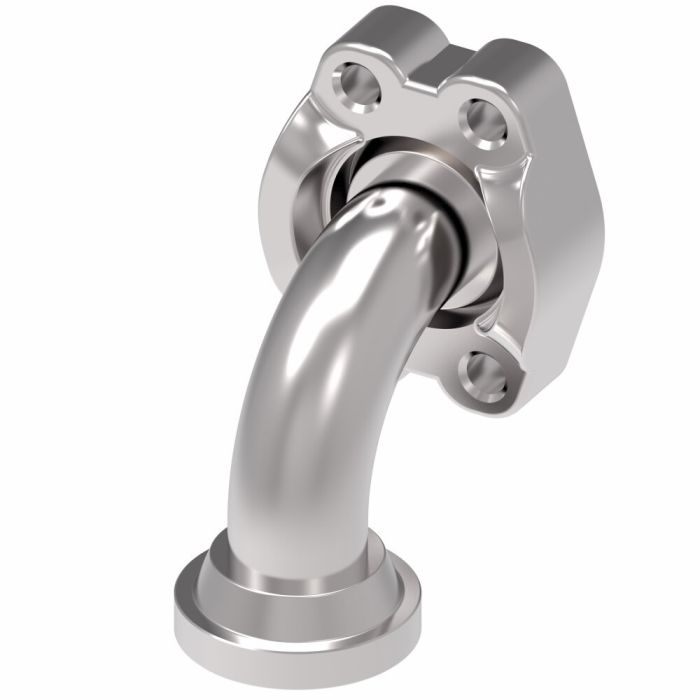

Designed for demanding industrial environments, the Danfoss / Eaton Split Flange is a Flanged Female/Flanged Female 90° Elbow Adapter built to SAE J514 certification standards. Constructed from carbon steel with Dura-Kote plating, it delivers strong resistance to corrosion, a practical advantage in harsh or chemically aggressive conditions.
With a drop dimension of 2.750 inches and a package weight of 0.8 lb, this adapter suits a range of installation configurations. It is rated for a minimum working temperature of -65°F, supporting reliable performance across extreme thermal ranges. Applications span marine and military, chemical processing, pulp and paper, food and beverage processing, and off-shore drilling environments. The design supports higher operating pressures above standard SAE thresholds, and the Aeroquip product line offers hundreds of styles to accommodate varied configuration requirements.
SKU: 504089-24S
Supplier Part Number (MPN): 504089-24S
|
Alternate Part Numbers
MINO-00925X04392
|
Application
Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling
|
Certifications
SAE J514
|
Drop Dimension
2.75
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13553
|
End Gender 2
13555
|
End Type 1
Flanged
|
End Type 2
Flanged
|
Features
Dura-Kote plating for superior corrosion resistance|Design flexibility with hundreds of styles to choose from|Higher operating pressures above SAE standards
|
ICC
Elbow Adapters
|
Item Type
Flanged Female/Flanged Female 90° Elbow Adapter
|
Language
English
|
Minimum Working Temperature
-65
|
Net Pack Quantity Units
EA
|
NMFC
50
|
Product Material
Carbon Steel
|
Product Width
3.69
|
Sub Brand
None
|
Supplier Part Number
504089-24S
|
Product Weight
2.49 lbs
|
