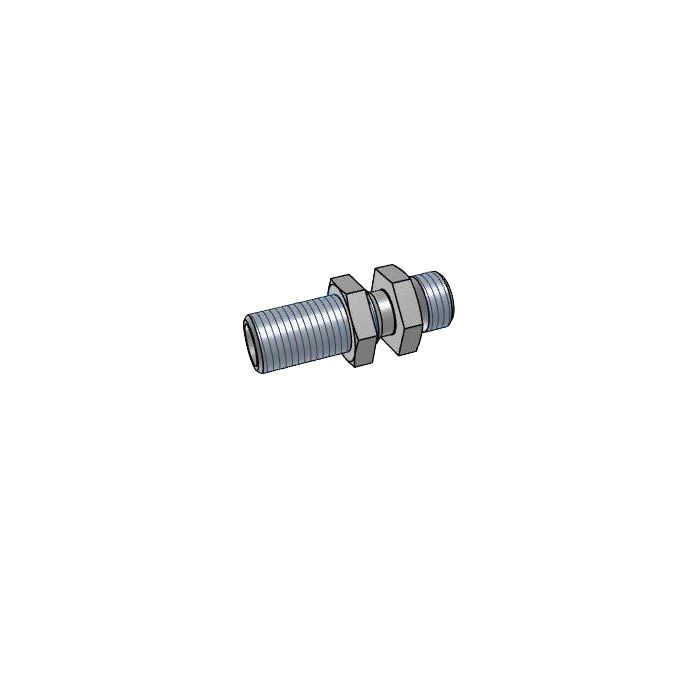

main product photo

Din Bulkhead Union Complete

Ask A Question

Description & Features

Crafted for precision and durability, this steel Din Bulkhead Union Complete is designed for efficient hydraulic connections. Featuring a straight shape, it is equipped with M16 x 1.5 DIN tube threads on both sides, ensuring secure male connections. The union measures 52mm in total length, with specific segment lengths of 28mm and 10mm, and a uniform width of 22mm. These dimensions make it ideal for a variety of industrial applications that require reliable and robust connections.

Manufactured by Adaptall, this bulkhead union is noted for its high-grade steel construction, providing excellent resistance to wear and corrosion in demanding environments. The uniform specifications on both sides allow for seamless integration into existing systems, ensuring compatibility and ease of use. This product is indispensable for professionals seeking dependable hydraulic connections.

SKU: 5040L-10C

Supplier Part Number (MPN): 5040L-10C

Specifications

Brand
adapt-all
Connection Size 2
10 mm
Connection Type
Male Metric
Connection Type 1
Male Metric DIN 24 deg Tube
Connection Type 2
Male Metric DIN 24 deg Tube
Dimension Standards
DIN 2353, ISO 8434-1
Dimensions
52 mm L
Finish
Zinc-Plated
Fitting Type
Union
Hex Size
22 mm
Material
Steel
Material Construction
Carbon Steel
Series
5040 Series
Thread Size
M16x1.5

Product Questions & Answers (3)

Question by: Dean T on May 18, 2025, 8:49 AM
got a panel pass-through deal, is this the straight bulkhead union with m16 x 1.5 on both sides?
Answer by: Customer Support on May 20, 2025, 6:09 AM
For a straight bulkhead union with matching ends, this one fits that bill. Both sides are male DIN tube threads called out as M16 x 1.5, so it is set up to pass through a bulkhead and connect the same thread on each side.
Question by: Wade M on Jul 8, 2025, 10:03 AM
So, this here union is made of steel, right? Wondering if it'll hold up against some rust, being used outdoors mostly.
Answer by: Customer Support on Jul 10, 2025, 6:05 AM
Steel construction does offer good resistance to wear. It should hold up well in demanding environments, giving you a dependable hydraulic connection.
Question by: Tommy P on Feb 6, 2026, 3:50 PM
Both sides are M16 x 1.5 DIN tube threads, that right? Just want to make sure before I go orderin' the wrong thing for a panel mount setup I got.
Answer by: Customer Support on Feb 8, 2026, 3:27 PM
Correct on both counts. Each side carries an M16 x 1.5 male DIN tube thread, so the fitting is fully symmetrical. That makes it straightforward to drop into a bulkhead or panel mount application without having to worry about which end faces which direction.
